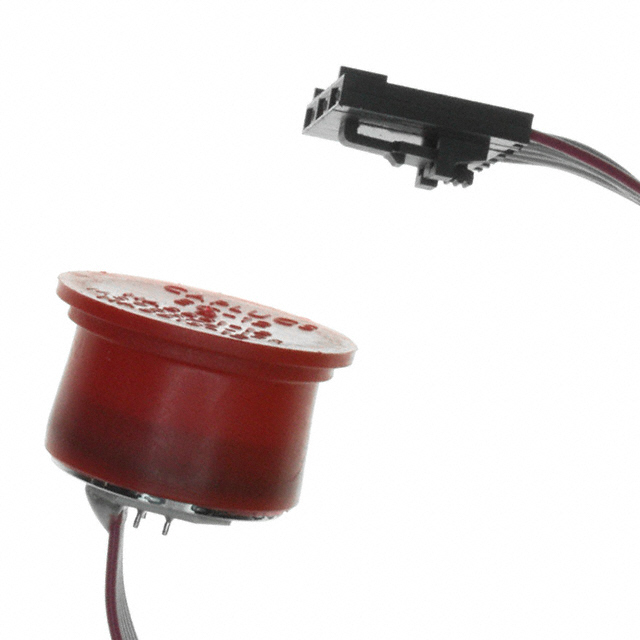

82-030G-C
SENSOR 30PSIG RIBBON W/CONNManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 82-030G-C is a pressure sensor with a 30 PSIG (206.84 kPa) operating pressure range. This vented gauge sensor provides a 0 mV to 100 mV output across a Wheatstone bridge configuration, featuring temperature compensation for enhanced performance. The component offers ±0.1% accuracy and operates within a wide temperature range of -40°C to 125°C. Designed for through-hole mounting with PCB termination, it is supplied in a 4-DIP module package. The maximum pressure rating is 90 PSI (620.53 kPa). This component is suitable for applications in industrial automation and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PCB |
| Voltage - Supply | - |
| Port Size | - |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 90PSI (620.53kPa) |
