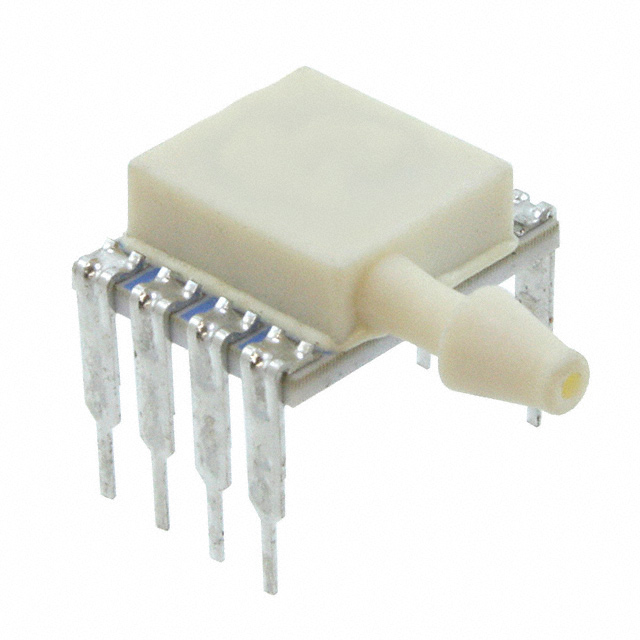

4525DO-SS5AI005GP
SENSOR 5PSIG 0.14"" 14BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

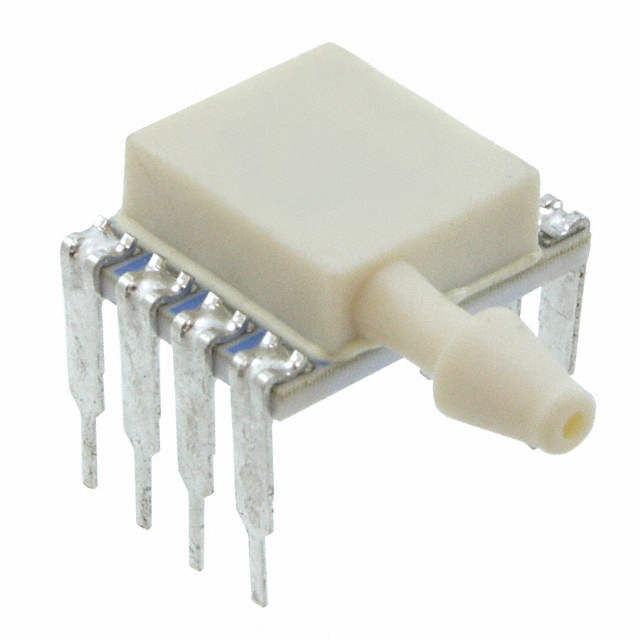

The TE Connectivity Measurement Specialties MS4525DO series sensor, part number 4525DO-SS5AI005GP, is a 5 psi (34.47kPa) vented gauge pressure sensor. This component features a 0.14-inch (3.56mm) barbed male tube port and is housed in an 8-DIP module. It provides a 14-bit I2C output and operates from a 5V supply. With an accuracy of ±0.25% and temperature compensation, this sensor is designed for demanding applications across industrial, medical, and aerospace sectors. The operating temperature range is -25°C to 105°C, with a maximum pressure rating of 20PSI (137.9kPa).
Additional Information
Series: MS4525DORoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.14"" (3.56mm) Tube |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 20PSI (137.9kPa) |
Request a Quote
Clients Also Buy

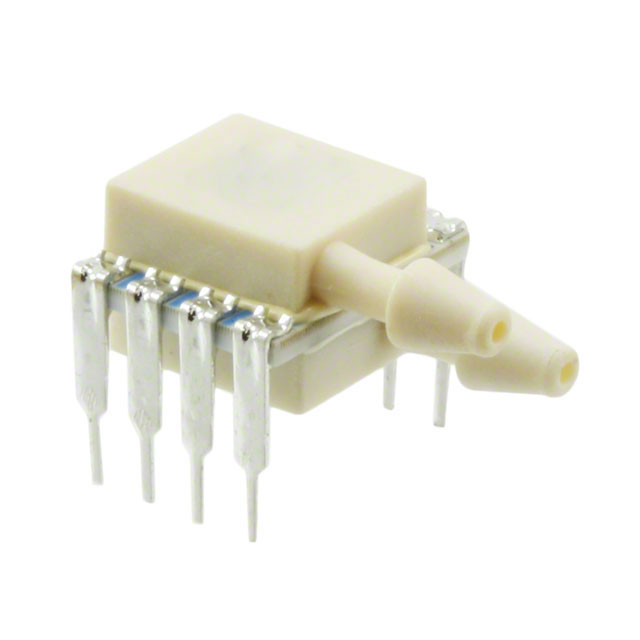

4525DO-DS5AI001DP
SENSOR 1PSID 0.14"" 14BIT

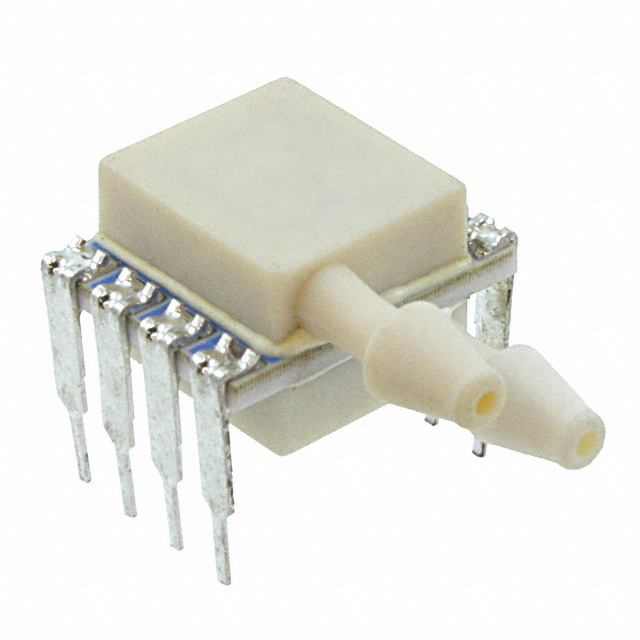

4525DO-DS5AI015DP
SENSOR 15PSID 0.14"" 14BIT

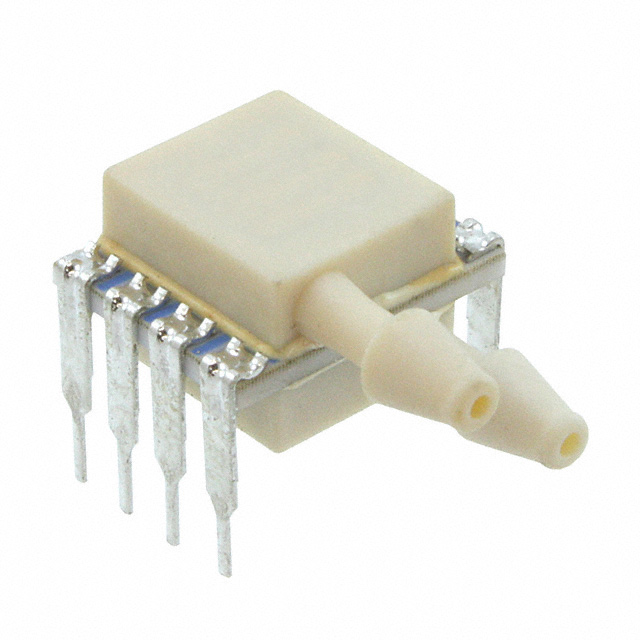

4525DO-DS5AI030DP
