4525-SS5A001GP
SENSOR 1PSIG 0.14"" 4.5VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties MS4525 series pressure sensor, part number 4525-SS5A001GP, is a vented gauge sensor with an operating pressure of 1 PSI (6.89kPa) and a maximum pressure of 20 PSI (137.9kPa). This amplified, temperature-compensated analog voltage output sensor provides a 0.5 V to 4.5 V output range with a ±0.25% accuracy. It features a 5V supply voltage and a 0.14" (3.56mm) barbed tube port. The 8-DIP module package with through-hole mounting is designed for board-mount applications. This component is suitable for use in industrial, medical, and automotive applications requiring precise pressure monitoring. The operating temperature range is -25°C to 105°C.
Additional Information
Series: MS4525RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.14"" (3.56mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 20PSI (137.9kPa) |
Request a Quote
Clients Also Buy

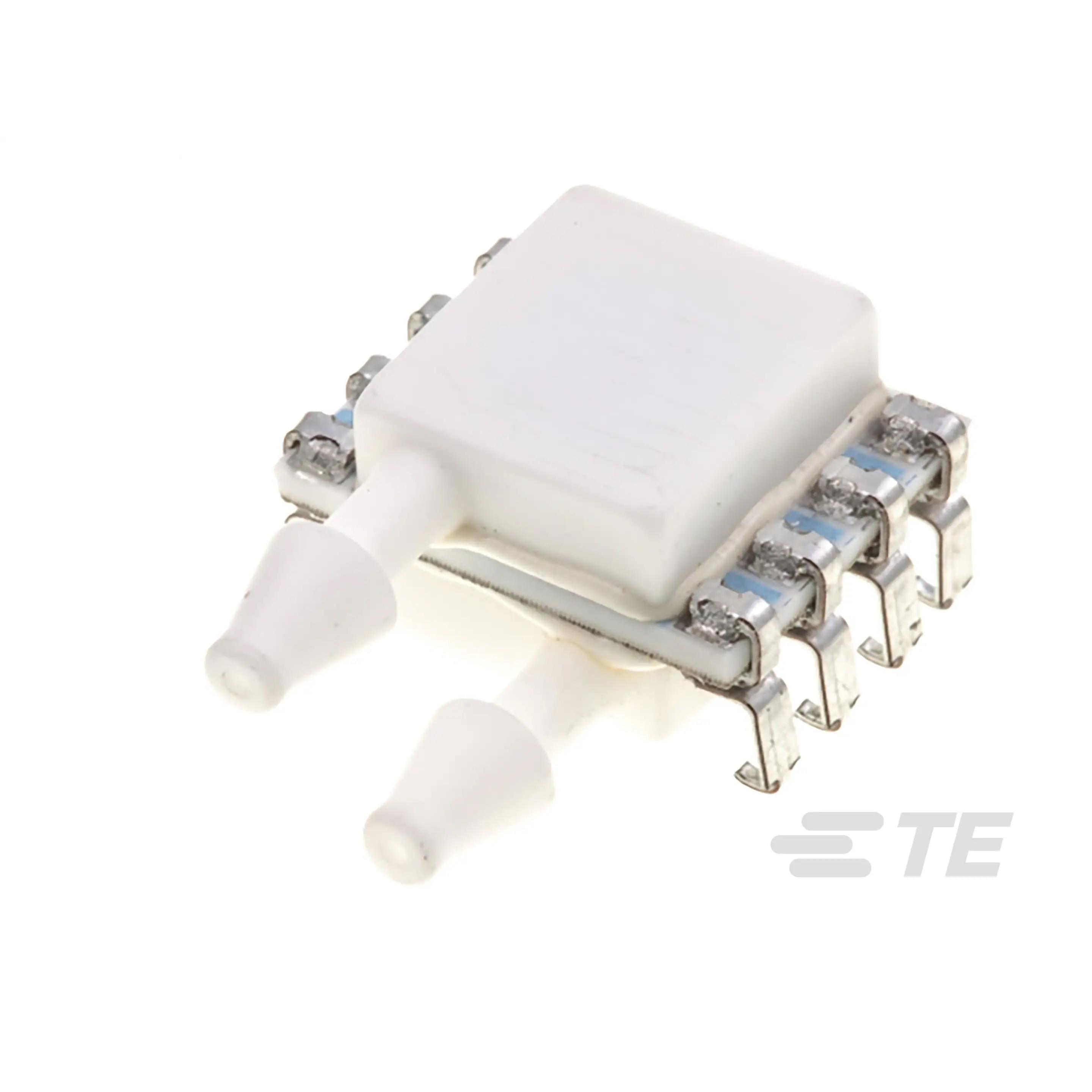

4525-DS3A001DP
