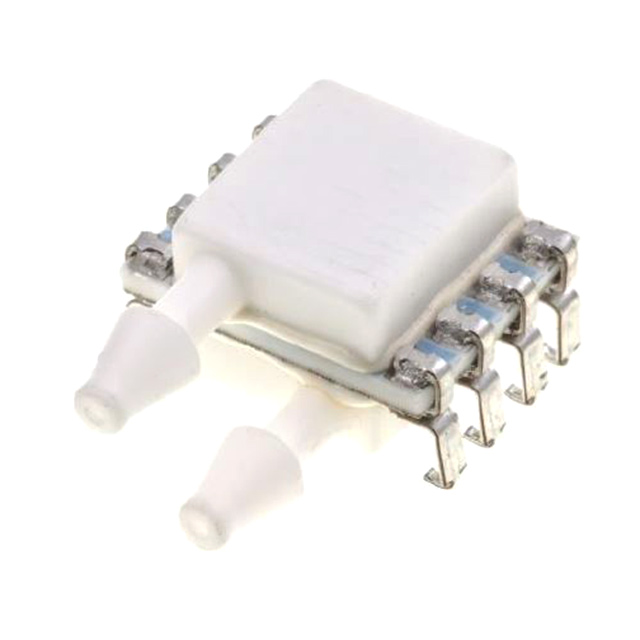

4515DO-DS5BS002DS
SENSOR 0.07PSID 0.14"" 14BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.07PSI (0.5kPa) Differential Male - 0.14"" (3.56mm) Tube, Dual 14 b 8-DIP Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | 0.07PSI (0.5kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -10°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.14"" (3.56mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 10PSI (68.95kPa) |
