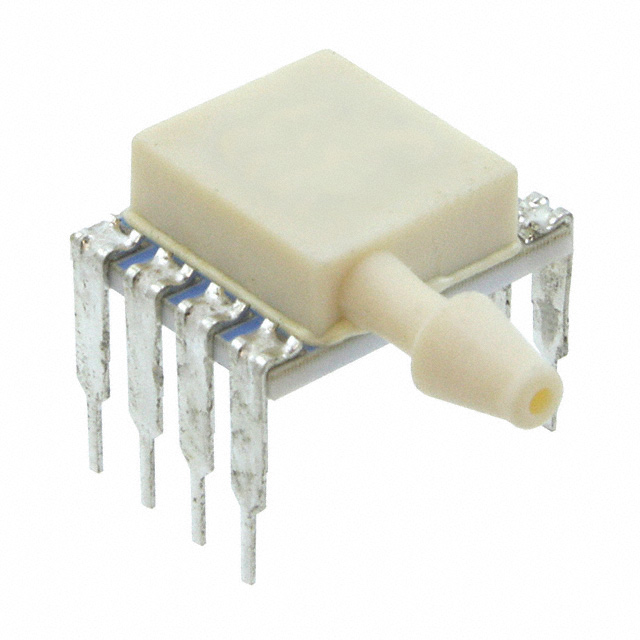

4515-SS5A005GP
SENSOR PRESS GAUGE 5"" H2O 8DIPManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.18PSI (1.25kPa) Vented Gauge Male - 0.14"" (3.56mm) Tube 0.5 V ~ 4.5 V 8-DIP Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 0.18PSI (1.25kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -10°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.14"" (3.56mm) Tube |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 10PSI (68.95kPa) |
