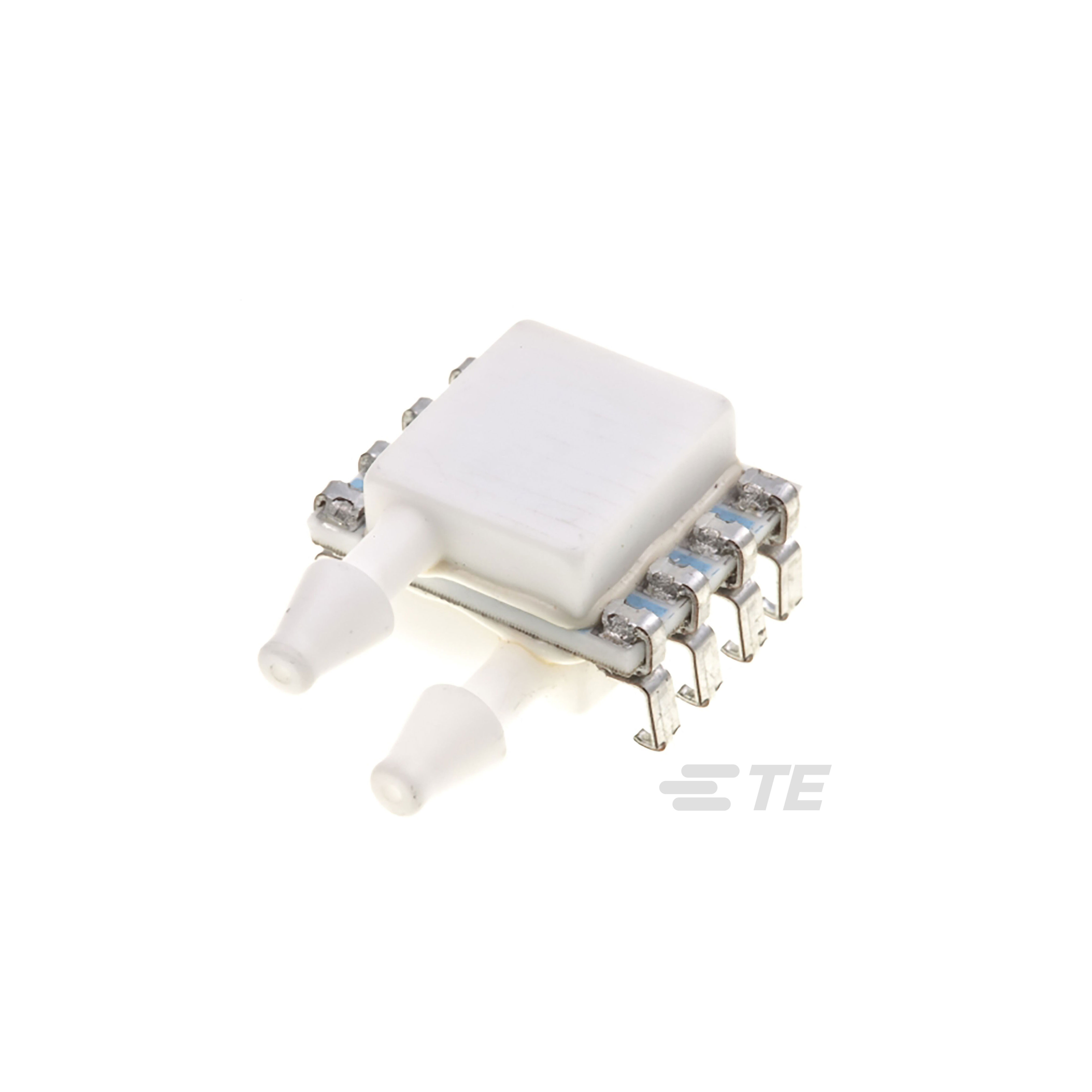

4515-DS5A004DP
PRESS XDCR,ANALOG,INH20 RANGEManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.14PSI (1kPa) Differential Male - 0.14"" (3.5mm) Tube, Dual 0.5 V ~ 4.5 V 8-DIP (0.524"", 13.30mm), Dual Ports, Same Side
Additional Information
Series: MS4515RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Dual Ports, Same Side |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 0.14PSI (1kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -10°C ~ 85°C |
| Termination Style | PC Pins |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.14"" (3.5mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 300PSI (2068.43kPa) |
