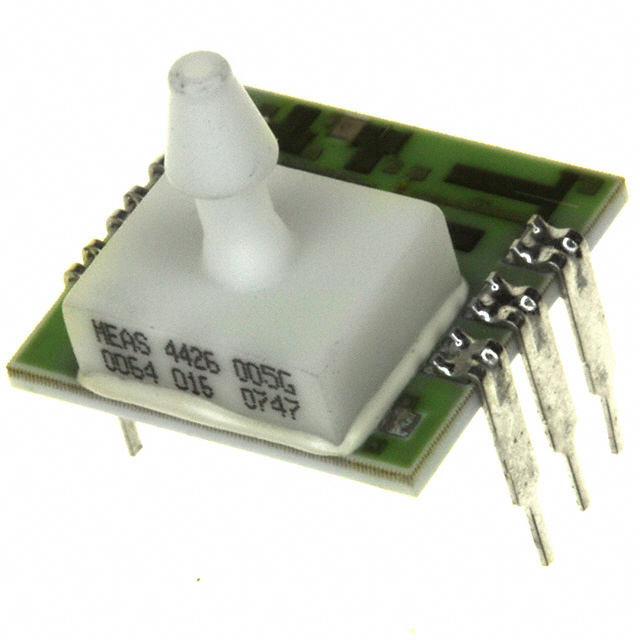

4426-005G
SENSOR 5PSIG 0.13"" .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 4426 Series pressure sensor, part number 4426-005G, offers a 5 PSI (34.47kPa) vented gauge pressure measurement with a 0.13-inch (3.4mm) barbed port. This Wheatstone bridge output sensor provides a linear output of 0 mV to 60 mV, driven by a 12V to 20V supply. Designed for board mounting, it features temperature compensation and an accuracy of ±0.15%. The 6-DIP module package with PC pin termination facilitates through-hole mounting. Applications include industrial and medical equipment where precise pressure monitoring is critical. The operating temperature range is -25°C to 85°C, with a maximum pressure rating of 15 PSI (103.42kPa).
Additional Information
Series: 4426RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 60 mV (12V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.15% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 12V ~ 20V |
| Port Size | Male - 0.13"" (3.4mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 15PSI (103.42kPa) |
Request a Quote
Clients Also Buy

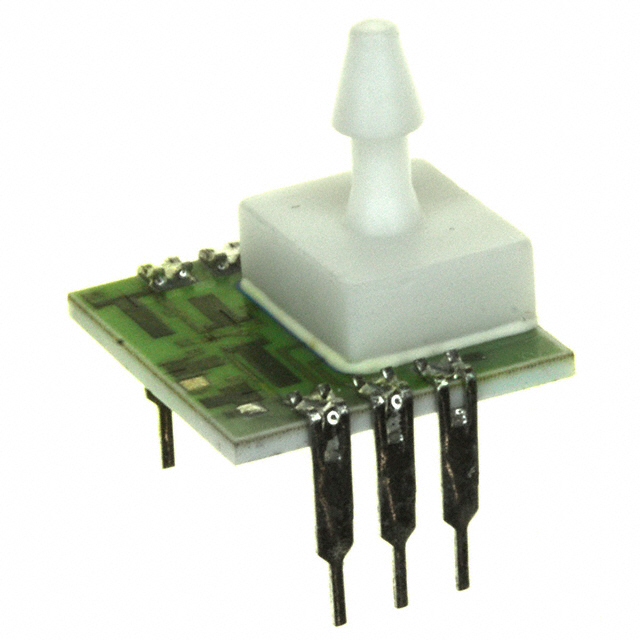

4426-015A
SENSOR 15PSIA 0.13"" .09V

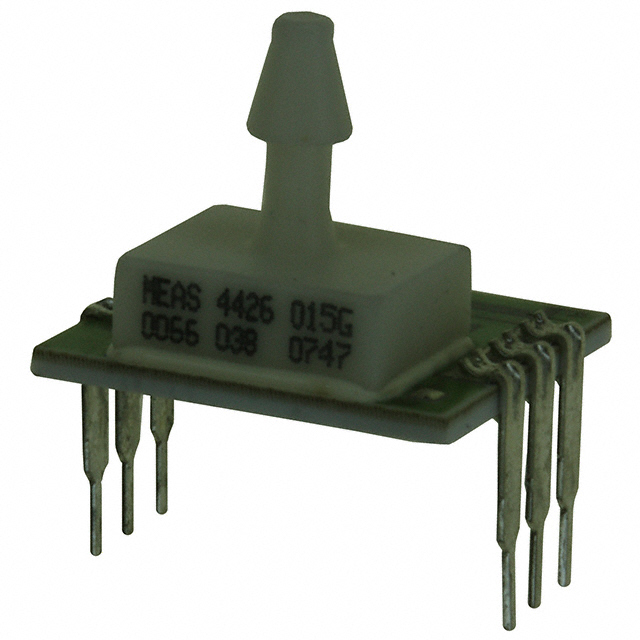

4426-015G
