4425-100D
SENSOR 100PSID 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

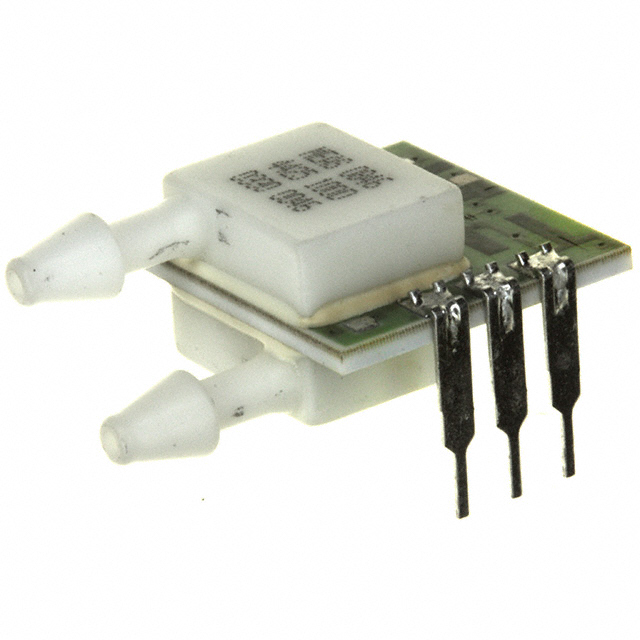

TE Connectivity Measurement Specialties 4425 Series differential pressure sensor, part number 4425-100D. This temperature-compensated sensor offers 100 PSI differential pressure measurement with a nominal output of 0 mV to 100 mV across a 12V to 20V supply. Featuring a 0.13" (3.4mm) dual barbed port and through-hole mounting, this 6-DIP module is designed for board-level integration. Its accuracy is rated at ±0.25% with an operating temperature range of -25°C to 85°C. Applications include industrial automation and process control systems. The maximum pressure rating is 300 PSI.
Additional Information
Series: 4425RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV (12V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 12V ~ 20V |
| Port Size | Male - 0.13"" (3.4mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 300PSI (2068.43kPa) |
Request a Quote
Clients Also Buy

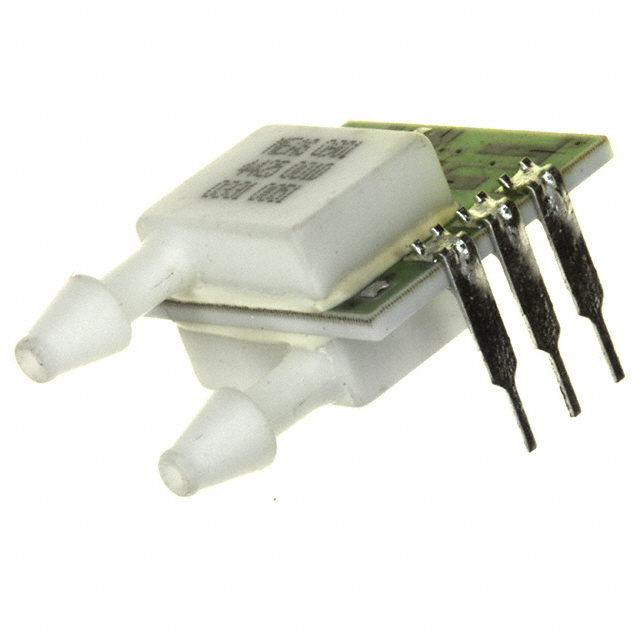

4425-001D
SENSOR 1PSID 0.13"" .018V

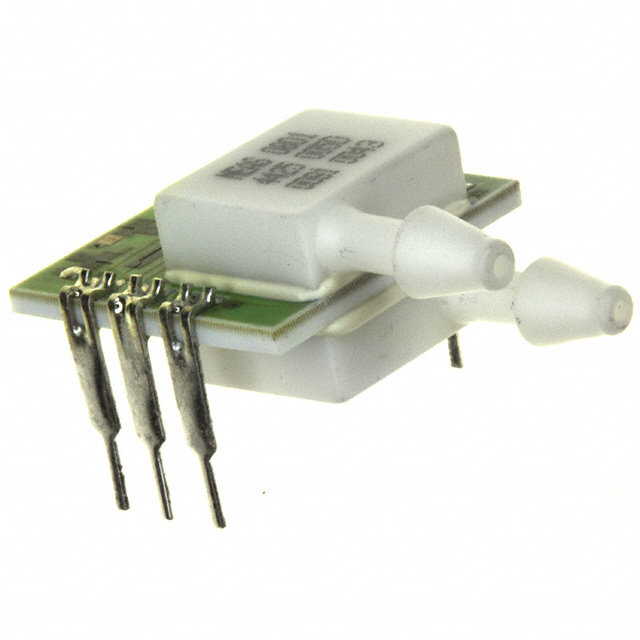

4425-005D
SENSOR 5PSID 0.13"" .06V

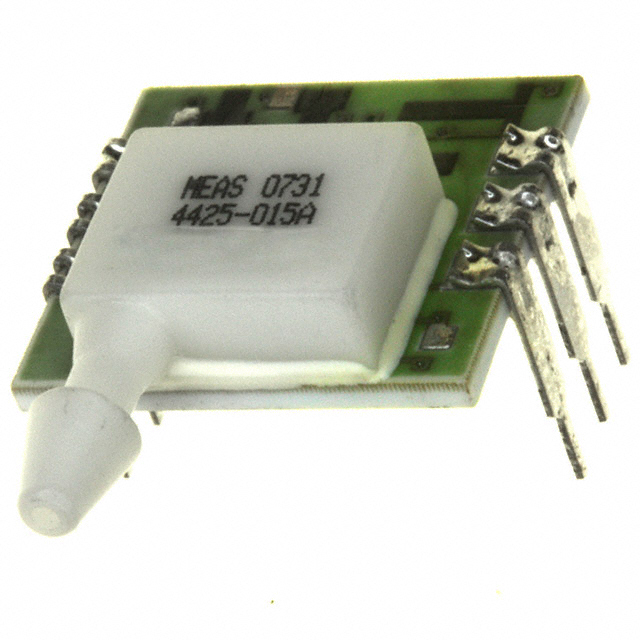

4425-015A
