33A-015D
SENS 15PSID 0.19/0.13"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

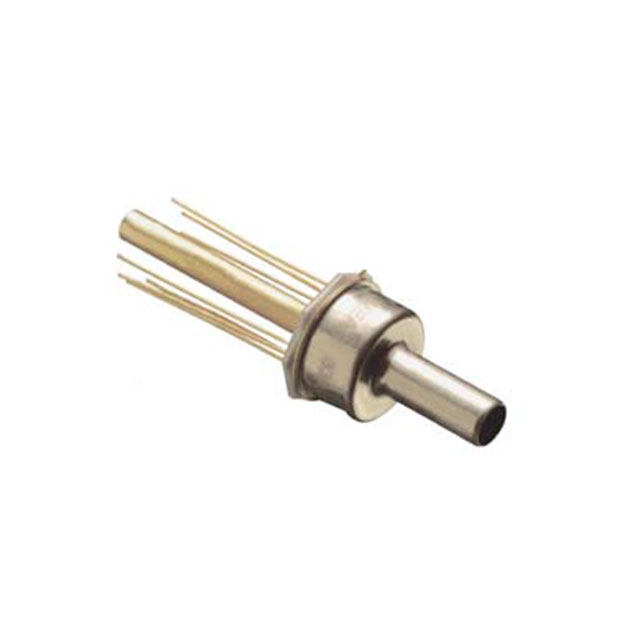

TE Connectivity Measurement Specialties offers the 33A-015D, a differential pressure sensor designed for demanding applications. This TO-8 style component features a 0 mV to 100 mV Wheatstone bridge output, with an operating pressure range of 15 PSI (103.42kPa) and a maximum pressure rating of 45 PSI (310.26kPa). The sensor incorporates temperature compensation for enhanced accuracy, specified at ±0.2%. Its construction includes two male port connections: one 0.19-inch (4.78mm) tube and one 0.13-inch (3.18mm) tube, both barbless. The 33A-015D is suitable for board mount applications and operates across a wide temperature range of -40°C to 125°C. This component finds utility in industrial automation and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube, Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
