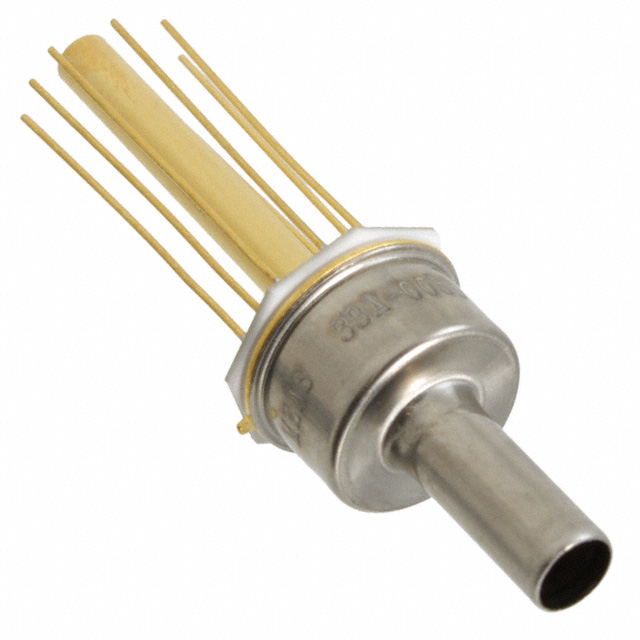

33A-005D
SENSOR 5PSID 0.19/0.13"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 33A-005D is a differential pressure sensor featuring a Wheatstone bridge output. This TO-8 style component is designed for board mounting applications and offers an operating pressure range of 5 PSI (34.47kPa) with a maximum pressure rating of 20 PSI (137.9kPa). The sensor provides a linear output of 0 mV to 100 mV and exhibits an accuracy of ±0.2%. It incorporates temperature compensation for enhanced performance across its operating temperature range of -40°C to 125°C. The device includes two port sizes: a 0.19-inch (4.78mm) tube and a 0.13-inch (3.18mm) tube, both with a barbless port style. This component is suitable for industrial, medical, and aerospace applications requiring precise differential pressure measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube, Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
