33A-002D
SENSOR 2PSID 0.19/0.13"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

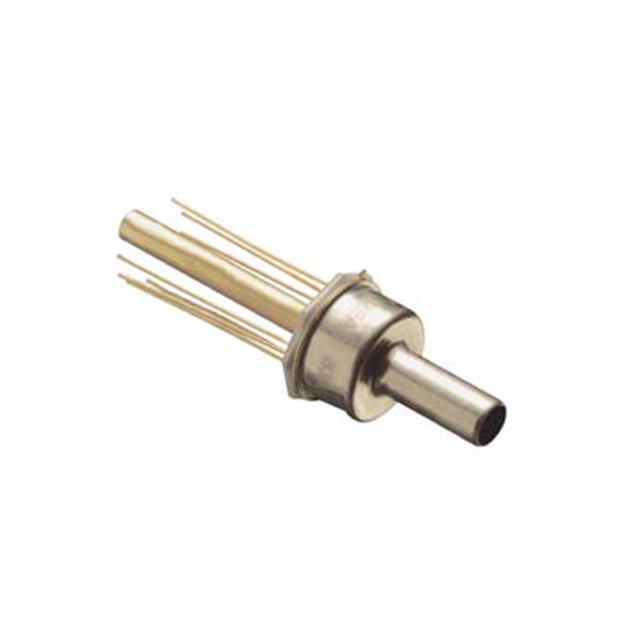

The TE Connectivity Measurement Specialties 33A-002D is a differential pressure sensor designed for board mounting applications. This component features a Wheatstone bridge output, providing a 0 mV to 100 mV signal across a 2 PSI (13.79kPa) operating pressure range. The device offers ±0.2% accuracy and is temperature compensated, operating reliably from -40°C to 125°C. The 33A-002D is packaged in a TO-8 style with 12 leads and includes male ports sized at 0.19" (4.78mm) and 0.13" (3.18mm), both with a barbless port style. It is supplied in tube packaging and is suitable for use in industrial and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 2PSI (13.79kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube, Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
