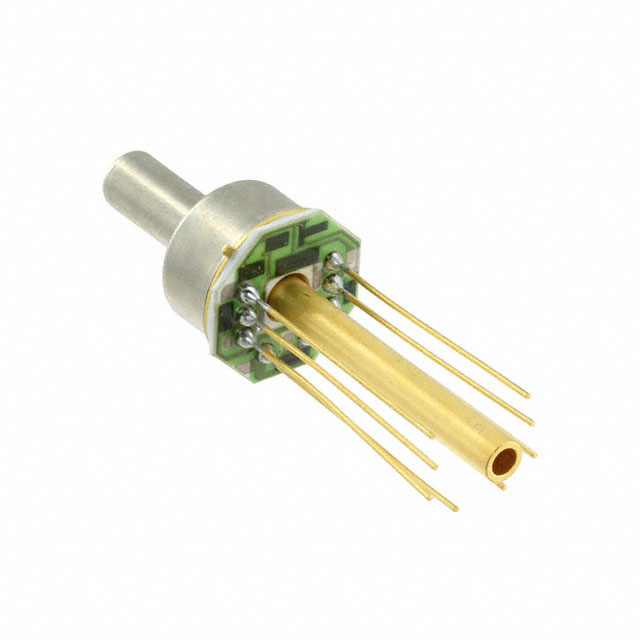

33A-001D
SENSOR 1PSID 0.19/0.13"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 33A-001D is a 1 PSI differential pressure sensor with a Wheatstone bridge output. This TO-8 style component offers a mV output range of 0 mV to 100 mV, featuring temperature compensation for enhanced accuracy of ±0.2%. It is designed for board mounting with through-hole termination and accepts 0.19-inch and 0.13-inch barbed ports. The sensor operates across a wide temperature range of -40°C to 125°C and can withstand a maximum pressure of 10 PSI. Applications for this device include industrial automation and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube, Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 10PSI (68.95kPa) |
