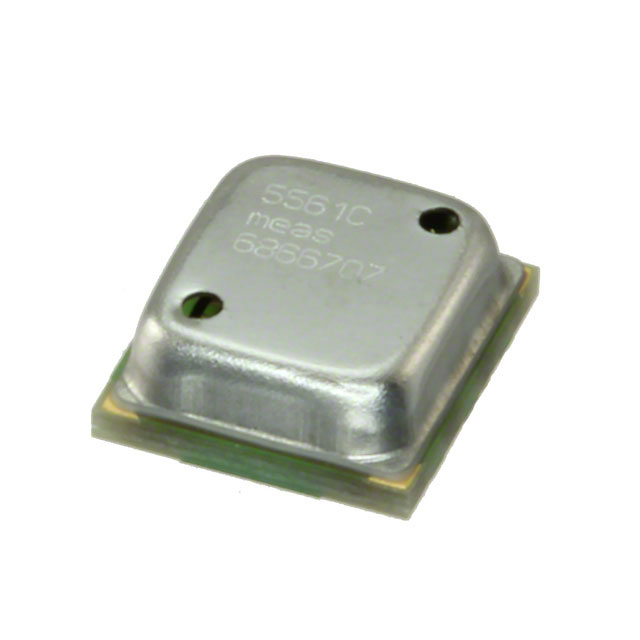

325561000-00
SENSOR 15.95PSIA 16BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 325561000-00 is an absolute pressure sensor with an operating range of 0.15 PSI to 15.95 PSI (1 kPa to 110 kPa). This 8-SMD Module offers a 16-bit digital output via an SPI interface, facilitating direct integration into board-level designs. The component operates within a voltage supply range of 2.2V to 3.6V and is suitable for applications requiring precise pressure monitoring across a wide temperature range of -40°C to 85°C. Its surface mount termination style and compact 8-SMD Module package are designed for efficient automated assembly. This sensor is commonly employed in industrial automation and environmental monitoring systems where accurate absolute pressure measurement is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 8-SMD Module |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.2V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 72.52PSI (500kPa) |
