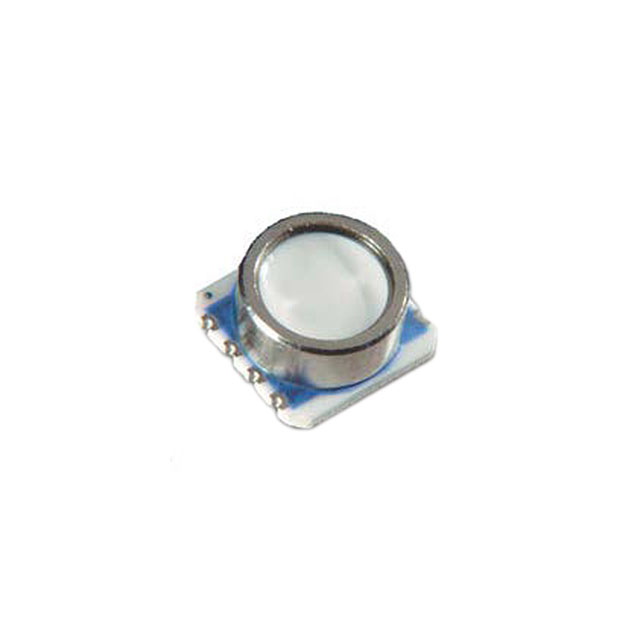

325541030-00
SENSOR 435.1PSIA 16BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 325541030-00 is a 16-bit absolute pressure sensor designed for surface mount applications. This 8-SMD module operates within an absolute pressure range of 435.1 PSI (3000 kPa), with a maximum pressure rating of 725.19 PSI (5000 kPa). The sensor features an SPI output interface and a supply voltage range of 2.2V to 3.6V. It is suitable for operation across an extended temperature range of -40°C to 85°C. This component finds utility in various board mount applications, including industrial automation and consumer electronics, where precise pressure monitoring is critical. The device is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-SMD Module |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | 435.1PSI (3000kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.2V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 725.19PSI (5000kPa) |
