325541010-00
SENSOR 435.1PSIA 16BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

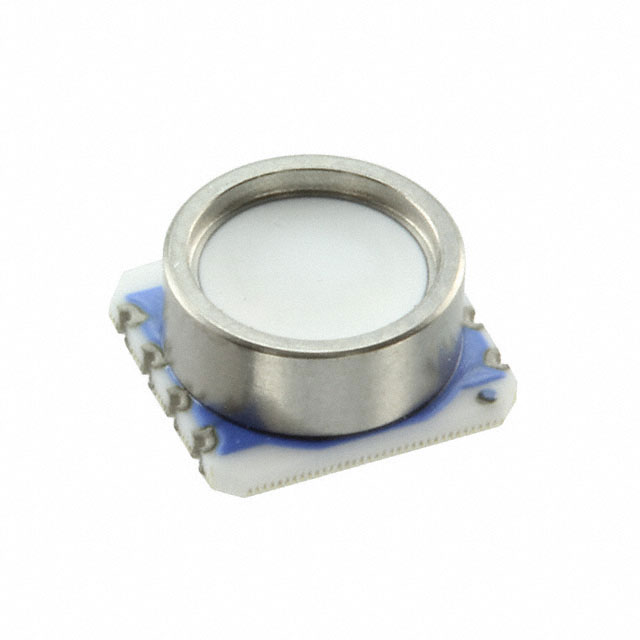

Pressure Sensor 435.1PSI (3000kPa) Absolute 16 b 8-SMD Module
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-SMD Module |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | 435.1PSI (3000kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.2V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 725.19PSI (5000kPa) |
