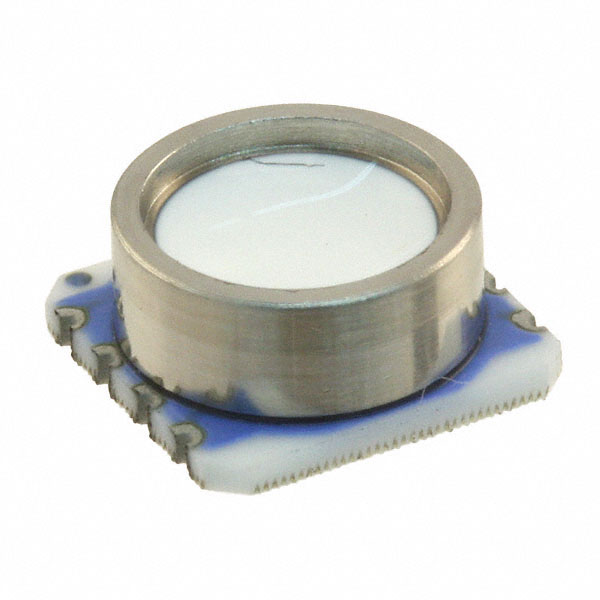

325540009-50
SENSOR 15.95PSIA 16BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) Absolute 16 b Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Output Type | Digital |
| Output | 16 b |
| Operating Pressure | 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.022PSI (±0.15kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.2V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 145.04PSI (1000kPa) |
