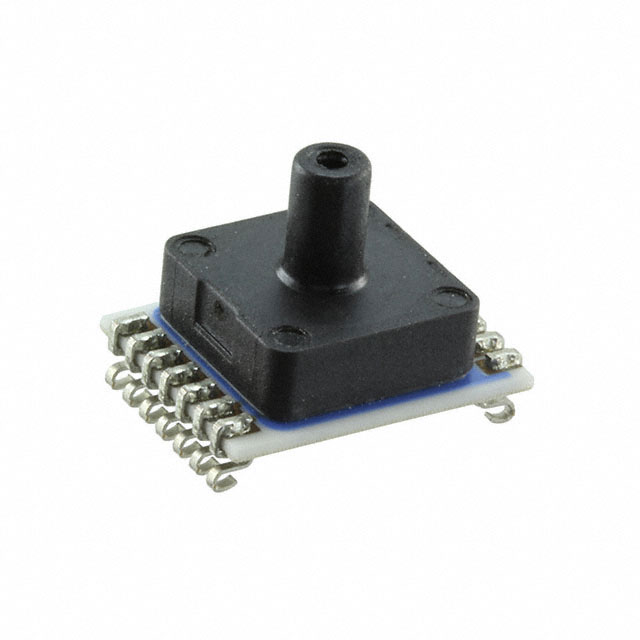

325536009-00
SENSOR 5.8PSIG 0.12"" 16BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 325536009-00 is a vented gauge pressure sensor designed for precise measurement in demanding applications. This component operates within an expansive pressure range of -14.5 PSI to 5.8 PSI (-100 kPa to 40 kPa), offering a 16-bit resolution for detailed data acquisition via its SPI output. Featuring a male, 0.12" (3mm) barbedless tube port and a surface mount termination style, it facilitates robust integration into printed circuit boards. The sensor is specified for operation across an industrial temperature range of -40°C to 85°C, with a supply voltage requirement of 2.2V to 3.6V. Industries such as industrial automation, medical devices, and HVAC systems commonly utilize this type of pressure sensing technology for accurate environmental monitoring and control.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 14-SMD Module |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | -14.5PSI ~ 5.8PSI (-100kPa ~ 40kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.2V ~ 3.6V |
| Port Size | Male - 0.12"" (3mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | - |
