325536008-00
SENSOR 14.5PSIG 0.12"" 16BITManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

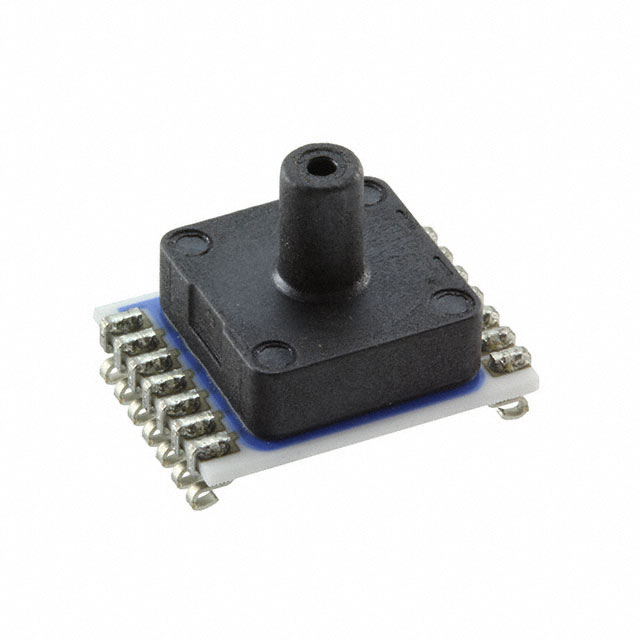

TE Connectivity Measurement Specialties 325536008-00 is a Vented Gauge Pressure Sensor with an operating range of -5.8 PSI to 14.5 PSI (-40kPa to 100kPa). This component features a 0.12" (3mm) male tube port and provides a 16-bit output via SPI. The sensor operates within a temperature range of -40°C to 85°C and requires a supply voltage of 2.2V to 3.6V. Packaged in a 14-SMD module, it is designed for surface mounting and offers SMD (SMT) termination. This device is suitable for board mount applications in industries such as industrial automation and medical equipment.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 14-SMD Module |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | -5.8PSI ~ 14.5PSI (-40kPa ~ 100kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.2V ~ 3.6V |
| Port Size | Male - 0.12"" (3mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | - |
