325401001-00
SENSOR 14.5PSIA .24VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

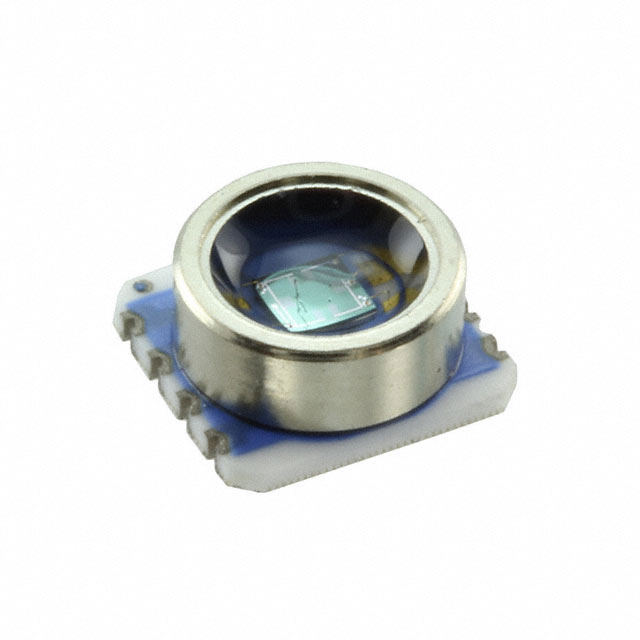

TE Connectivity Measurement Specialties 325401001-00 is an absolute pressure sensor designed for surface-mount applications. This component operates within a 14.5 PSI (100 kPa) range, featuring a Wheatstone bridge output that delivers a 0 mV to 240 mV signal across a 5V excitation. It offers ±0.4% accuracy and is rated for operation between -40°C and 125°C. The sensor is housed in an 8-SMD module with SMD termination. Key specifications include a maximum supply voltage of 20V and a maximum pressure rating of 72.52 PSI (500 kPa). This device is suitable for board-mount applications, commonly found in industrial and aerospace sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 240 mV (5V) |
| Operating Pressure | 14.5PSI (100kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.4% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 20V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 72.52PSI (500kPa) |
