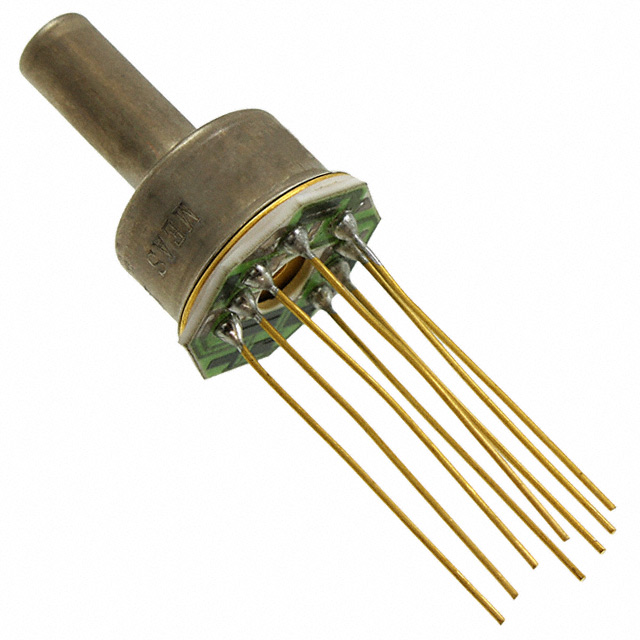

17-100G

SENSOR 100PSIG 0.19"" 0.1V TO8

Manufacturer: TE Connectivity Measurement Specialties

Categories: Pressure Sensors, Transducers

Quality Control: Learn More

TE Connectivity Measurement Specialties 17 series pressure sensor, part number 17-100G. This vented gauge pressure sensor operates at 100 PSIG (689.48 kPa) with a maximum pressure rating of 300 PSIG (2068.43 kPa). It features a 0.19-inch (4.78mm) male tube port and a TO-8 style package with 12 leads for through-hole mounting. The sensor provides a 0 mV to 100 mV output, utilizing a Wheatstone bridge configuration. Designed with temperature compensation and ±0.1% accuracy, it operates across a temperature range of -40°C to 125°C. This component is suitable for board mount applications and is commonly found in industrial and medical equipment. Packaging is provided in bulk.

Additional Information

Series: 17RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
FeaturesTemperature Compensated
PackagingBulk
Package / CaseTO-8 Style, 12 Leads
Output TypeWheatstone Bridge
Mounting TypeThrough Hole
Output0 mV ~ 100 mV
Operating Pressure100PSI (689.48kPa)
Pressure TypeVented Gauge
Accuracy±0.1%
Operating Temperature-40°C ~ 125°C
Termination StylePC Pin
Voltage - Supply-
Port SizeMale - 0.19"" (4.78mm) Tube
ApplicationsBoard Mount
Supplier Device PackageTO-8
Port StyleBarbless
Maximum Pressure300PSI (2068.43kPa)
