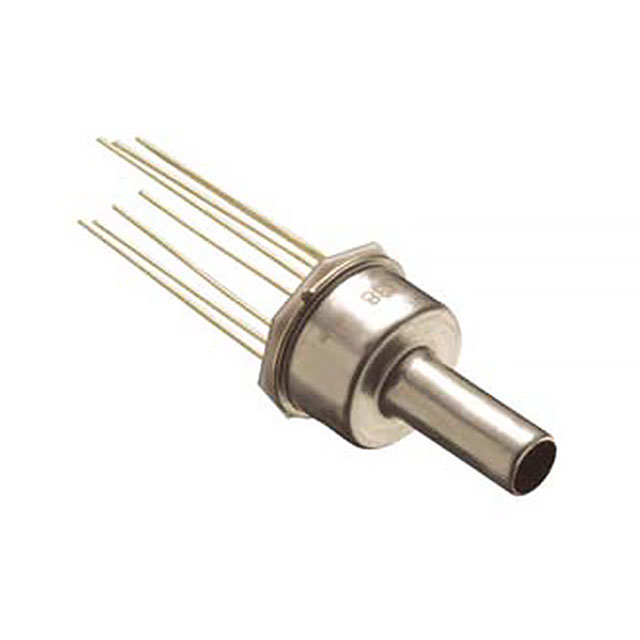

17-050G
SENSOR 50PSIG 0.19"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties' 17-050G is a Vented Gauge pressure sensor from the Series 17. This component utilizes a Wheatstone bridge output, providing a 0 mV to 100 mV signal range. It is designed for a 50 PSI (344.74kPa) operating pressure, with a maximum pressure rating of 150 PSI (1034.21kPa). The sensor features a 0.19" (4.78mm) male tube port and a TO-8 style package with 12 leads, suitable for through-hole mounting. Accuracy is specified at ±0.1%, and the device is temperature compensated, operating across a range of -40°C to 125°C. This pressure sensor is commonly found in board mount applications within industrial and automotive sectors.
Additional Information
Series: 17RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 50PSI (344.74kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 150PSI (1034.21kPa) |
