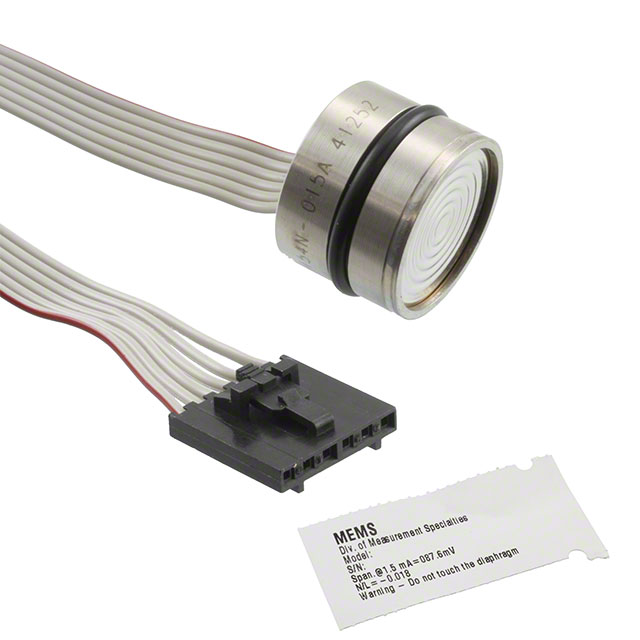

154N-015A-C
SENSOR 15PSIA 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 154N-015A-C is an absolute pressure sensor module designed for precise measurement. This component operates within a 15 PSI (103.42kPa) range and features a 0 mV to 100 mV output signal, utilizing a Wheatstone bridge configuration. Engineered for board mounting applications, it offers a high accuracy of ±0.1% and is temperature compensated for reliable performance across its operating temperature range of -40°C to 125°C. The maximum pressure handling capability is 45 PSI (310.26kPa). This sensor is suitable for demanding applications in industrial automation, aerospace, and medical equipment where accurate pressure monitoring is critical. It is supplied in tube packaging with connector termination.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | Module |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Connector |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
