154BC-T-012BA-C
SENSOR 174.05PSIA 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

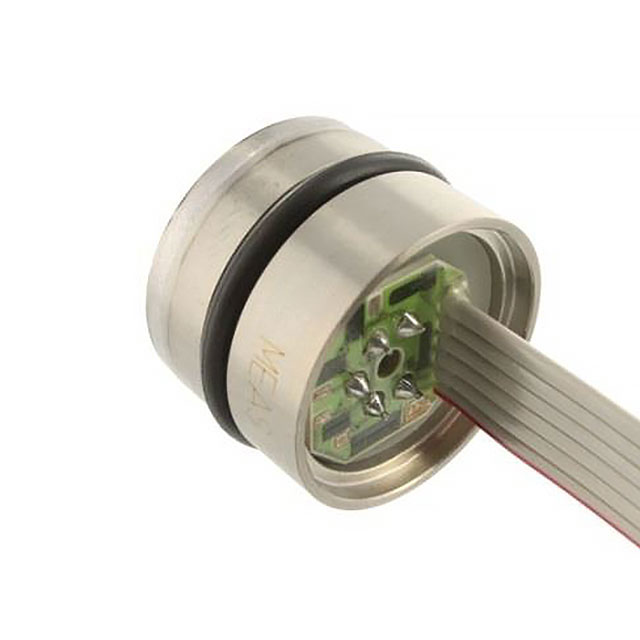

Pressure Sensor 174.05PSI (1200kPa) Absolute 0 mV ~ 100 mV Module
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | Module |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 174.05PSI (1200kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.3% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Connector |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 348.09PSI (2400kPa) |
