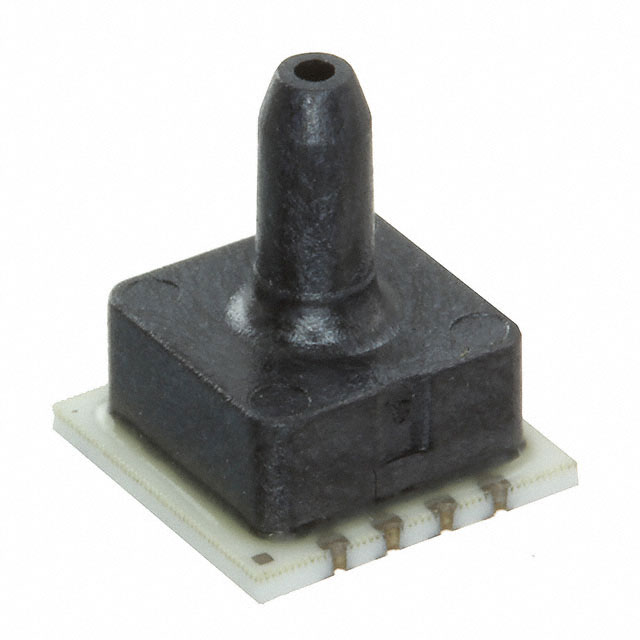

1471-015A-T
SENSOR 15PSIA 0.09"" .065VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1471-015A-T is an absolute pressure sensor designed for demanding applications. This component features a 15 PSI (103.42 kPa) operating pressure range with a maximum capability of 45 PSI (310.26 kPa). The sensor utilizes a Wheatstone bridge output, providing a 0 mV to 65 mV signal across a 5V supply. Its 0.09-inch (2.29mm) male tube port offers a barbless design suitable for precise fluid handling. The 8-SMD, No Lead, Top Port package with surface mount termination ensures efficient board integration. With an accuracy of ±0.25% and an operating temperature range of -40°C to 125°C, this sensor is well-suited for industrial and aerospace environments. The supply voltage range is 5V to 12V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-SMD, No Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 65 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 5V ~ 12V |
| Port Size | Male - 0.09"" (2.29mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
