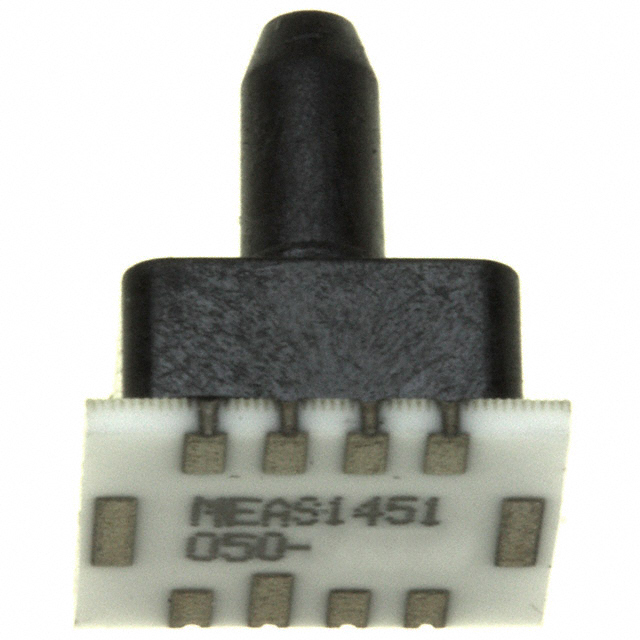

1451-050G-T
SENSOR 50PSIG 0.09"" .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties presents the 1451-050G-T, a 50 PSIG (344.74 kPa) vented gauge pressure sensor with a 0.09" (2.29mm) male tube port. This surface mount component operates within a 3V to 12V supply range, delivering a Wheatstone bridge output from 0 mV to 60 mV. Designed for board mounting applications, it boasts an accuracy of ±0.25% and an operating temperature range of -40°C to 125°C. The 10-SMD module package facilitates integration into demanding systems. This sensor is suitable for applications in industrial automation, medical devices, and HVAC systems requiring precise pressure monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 50PSI (344.74kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.09"" (2.29mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 150PSI (1034.21kPa) |
