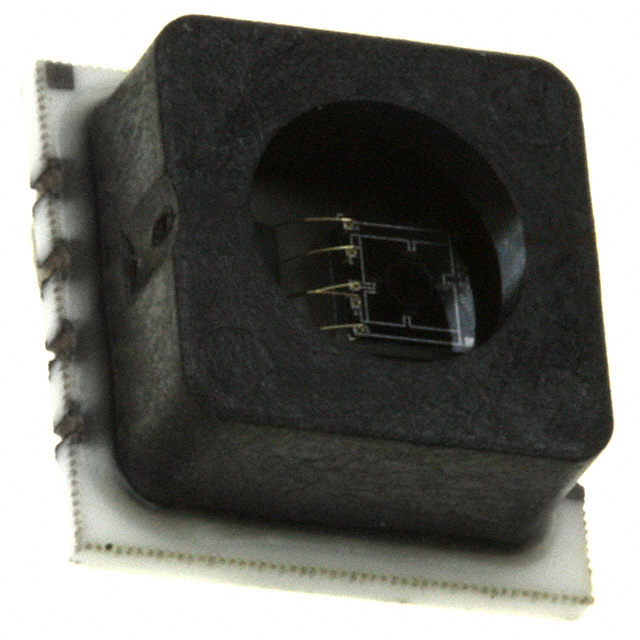

1451-050A-W
SENSOR 50PSIA .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 1451-050A-W is an absolute pressure sensor designed for board mount applications. This 10-SMD module features a Wheatstone bridge output, providing a 0 mV to 60 mV signal across a 3V to 12V supply range. With an operating pressure of 50 PSIA (344.74 kPa) and a maximum pressure rating of 150 PSIA (1034.21 kPa), this component offers ±0.25% accuracy. It operates reliably within a temperature range of -40°C to 125°C. Typical industries utilizing this sensor include aerospace, industrial automation, and medical equipment. The surface mount termination style and Bulk packaging make it suitable for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 50PSI (344.74kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 150PSI (1034.21kPa) |
