1451-030G-T
SENSOR 30PSIG 0.09"" .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

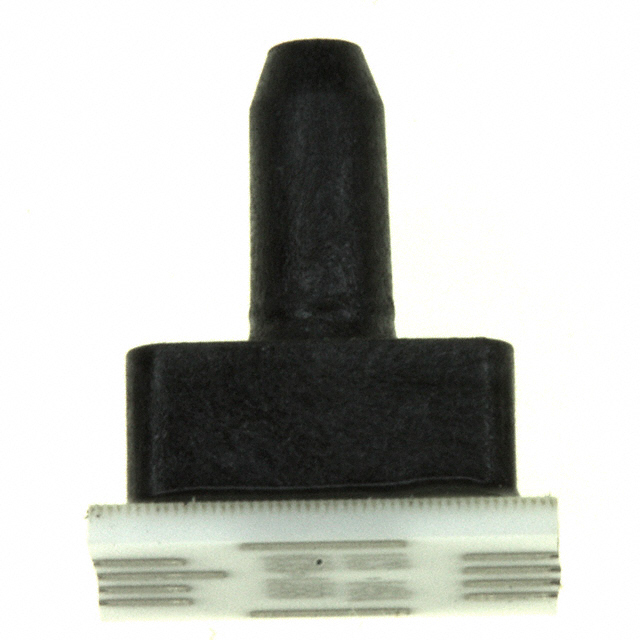

The TE Connectivity Measurement Specialties 1451-030G-T is a vented gauge pressure sensor with a 30 PSIG (206.84 kPa) operating pressure range. This surface-mount component features a 0.09-inch (2.29mm) male tube port and outputs a Wheatstone bridge signal from 0 mV to 60 mV. Designed for board mounting applications, it offers an accuracy of ±0.25% and operates across a temperature range of -40°C to 125°C. The sensor supports a supply voltage from 3V to 12V and is packaged in a 10-SMD module. This device is suitable for use in industrial automation, medical equipment, and HVAC systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.09"" (2.29mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 90PSI (620.53kPa) |
