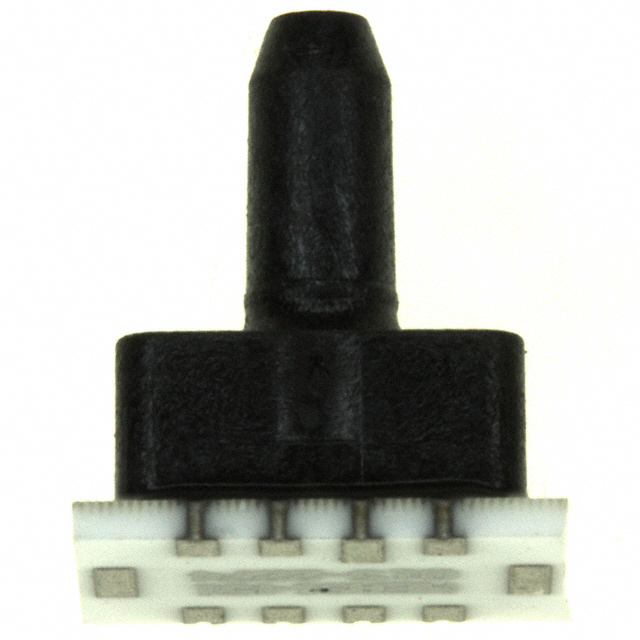

1451-015G-T
SENSOR 15PSIG 0.09"" .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1451-015G-T is a pressure sensor designed for surface mount applications. This component offers a 15 PSI (103.42kPa) operating pressure range with a vented gauge pressure type and a male, 0.09" (2.29mm) tube port. The output, delivered via a Wheatstone bridge, ranges from 0 mV to 60 mV, with a typical supply voltage requirement of 3V to 12V. Featuring an accuracy of ±0.25%, this sensor is suitable for operation across a wide temperature range of -40°C to 125°C. The 10-SMD module package with SMD termination is ideal for high-volume production environments. This sensor finds utility in industrial automation, medical devices, and HVAC systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.09"" (2.29mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
