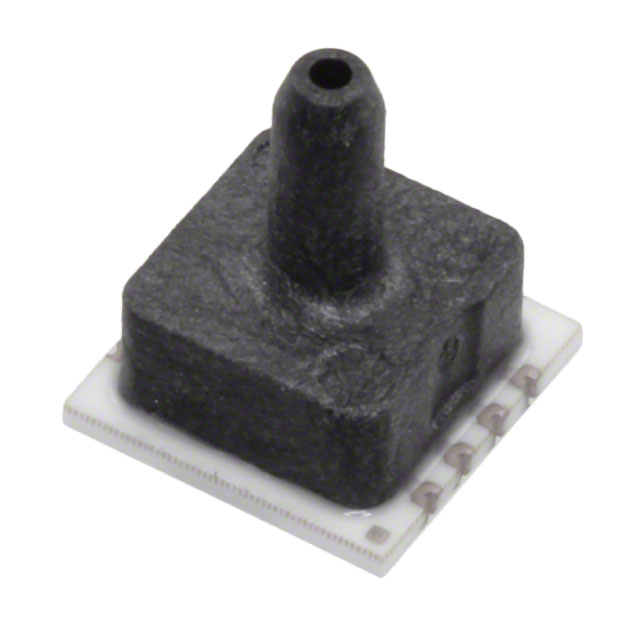

1451-015A-T
SENSOR 15PSIA 0.09"" .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1451-015A-T is an absolute pressure sensor designed for surface mount applications. This 10-SMD module features a 0.09-inch barbed port and operates within a 15 PSI (103.42 kPa) range, with a maximum pressure capability of 45 PSI (310.26 kPa). The sensor provides a Wheatstone bridge output ranging from 0 mV to 60 mV, powered by a supply voltage of 3V to 12V. Exhibiting an accuracy of ±0.25%, it is suitable for operation across a wide temperature spectrum from -40°C to 125°C. This component finds utility in industrial and medical equipment requiring precise pressure monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.09"" (2.29mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
