1451-015A-N
SENSOR 15PSIA .06VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

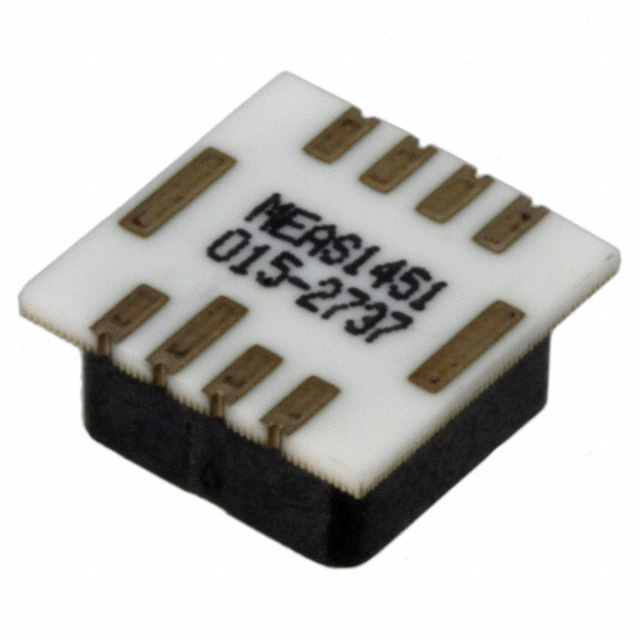

TE Connectivity Measurement Specialties 1451-015A-N is an absolute pressure sensor designed for board-mount applications. This 10-SMD Module features a 15 PSIa (103.42 kPa) operating pressure range with a maximum pressure rating of 45 PSIa (310.26 kPa). The sensor provides an output signal from 0 mV to 60 mV, utilizing a Wheatstone bridge configuration. It operates with a supply voltage between 3V and 12V and offers an accuracy of ±0.25%. The operating temperature range is -40°C to 125°C. This component is suitable for industries such as industrial automation, medical devices, and aerospace.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
