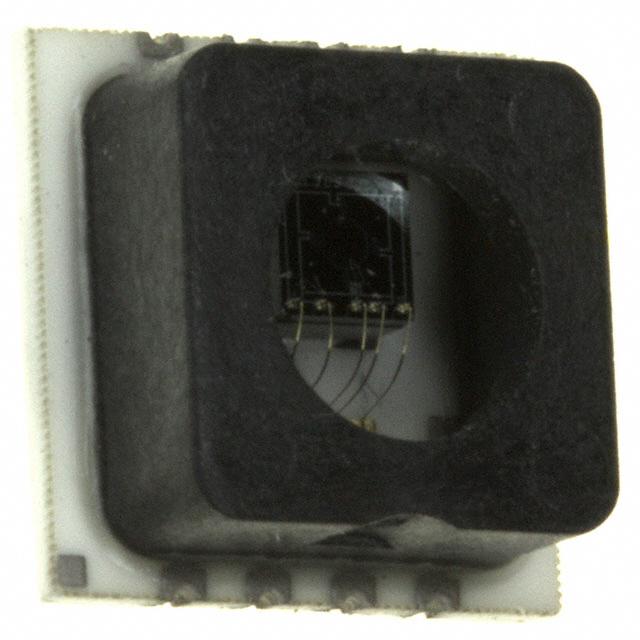

1451-005A-W
SENSOR PRESSURE 5PSIA SMDManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 1451-005A-W is an absolute pressure sensor designed for surface-mount applications. This component operates within a 3V to 12V supply voltage range, delivering an output of 0 mV to 60 mV across a 3V excitation. Engineered with a Wheatstone bridge configuration, it offers an accuracy of ±0.25%. The sensor is rated for an operating pressure of 5 PSIA (34.47 kPa) and can withstand a maximum pressure of 15 PSIA (103.42 kPa). Its operating temperature range spans from -40°C to 125°C. The 10-SMD module package with SMD termination is suitable for integration into various electronic systems. This pressure sensor finds utility in industries such as industrial automation, medical devices, and aerospace where precise pressure monitoring is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 10-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 60 mV (3V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 15PSI (103.42kPa) |
