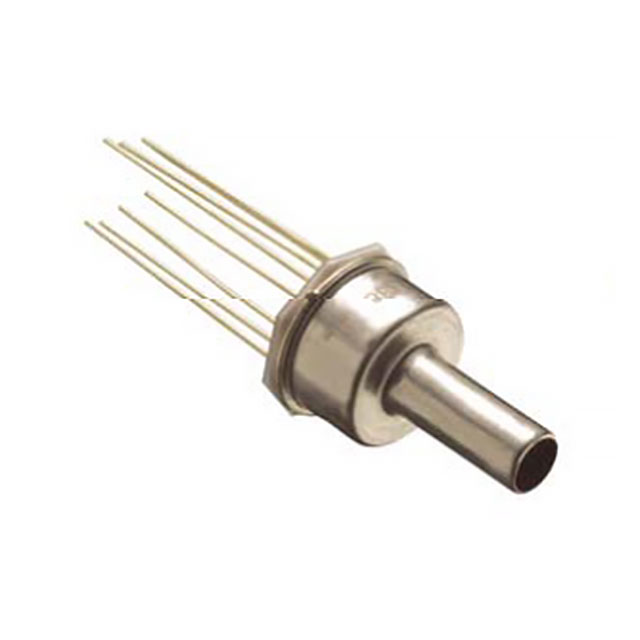

13A-100G
SENSOR 100PSIG 0.19"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 13A-100G is a vented gauge pressure sensor designed for demanding applications. This component operates within a 0 to 100 PSI (689.48kPa) range, with a maximum pressure rating of 300 PSI (2068.43kPa). It features a 0.19-inch (4.78mm) male tube port and a TO-8 style package with 12 leads. The output is a proportional voltage from 0 mV to 100 mV, derived from a Wheatstone bridge configuration. Temperature compensation is integrated to ensure accuracy of ±0.1% across an operating temperature range of -40°C to 125°C. This through-hole mounted sensor is suitable for board mounting and finds application in industries such as industrial automation and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | TO-8 Style, 12 Leads |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 300PSI (2068.43kPa) |
