12A-010G
SENSOR 10PSIG 0.19"" 0.1V TO8Manufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

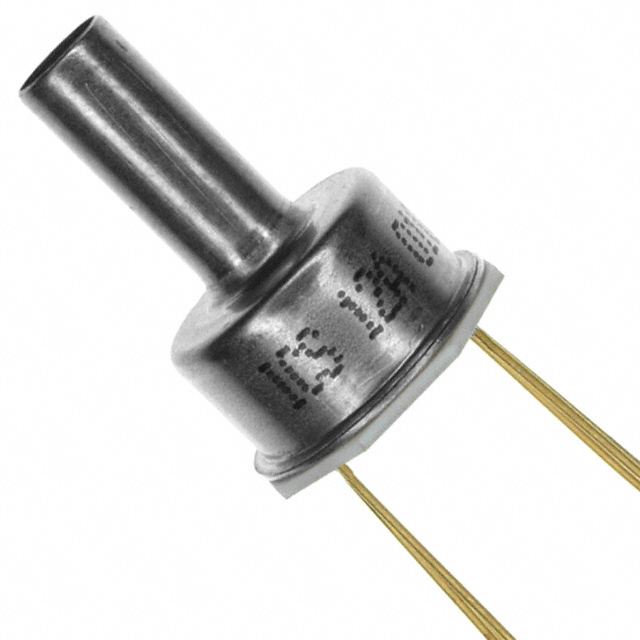

TE Connectivity Measurement Specialties TO-8 series pressure sensor, part number 12A-010G, is a vented gauge sensor designed for precise pressure measurement. It operates within a 0 to 10 PSI (68.95 kPa) range with a maximum pressure capability of 30 PSI (206.84 kPa). The sensor features a 0 mV to 100 mV output from a Wheatstone bridge configuration, calibrated for accuracy of ±0.1%. Encased in a TO-233AA, TO-8-3 metal can package, it utilizes a male, 0.19" (4.78mm) barbless tube port for connection. This temperature-compensated component is suitable for through-hole mounting and is employed in demanding applications across the industrial and medical sectors. Operating temperature range is from -40°C to 125°C.
Additional Information
Series: TO-8RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | |
| Package / Case | TO-233AA, TO-8-3 Metal Can |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 10PSI (68.95kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | TO-8 |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
| Packaging |
