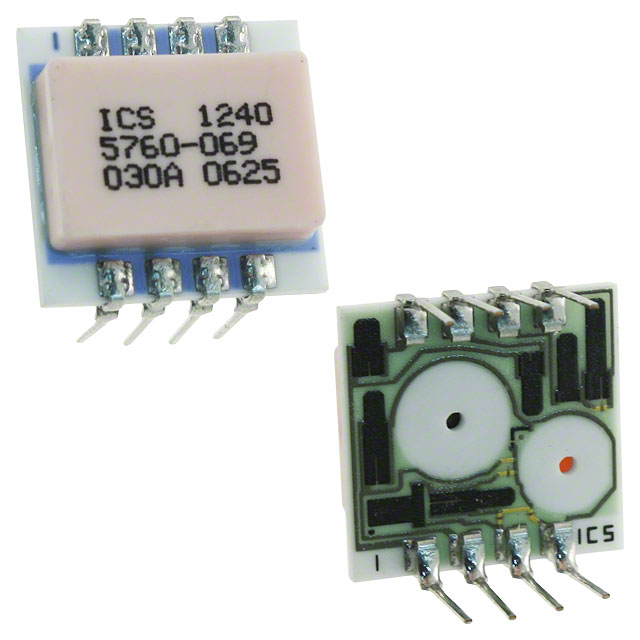

1240-030A-1N
SENSOR 30PSIA .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1240 series absolute pressure sensor, part number 1240-030A-1N. This 30 PSIA sensor features a Wheatstone bridge output providing 0 mV to 50 mV over its operating pressure range. Designed for board mount applications, it offers ±0.1% accuracy and is temperature compensated. The 8-DIP module package with PC pin termination is suitable for through-hole mounting. Operating from a 1.235V supply, this sensor functions across an industrial temperature range of -40°C to 125°C. It is utilized in various demanding applications including aerospace and industrial automation.
Additional Information
Series: 1240RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 90PSI (620.53kPa) |
Request a Quote
Clients Also Buy

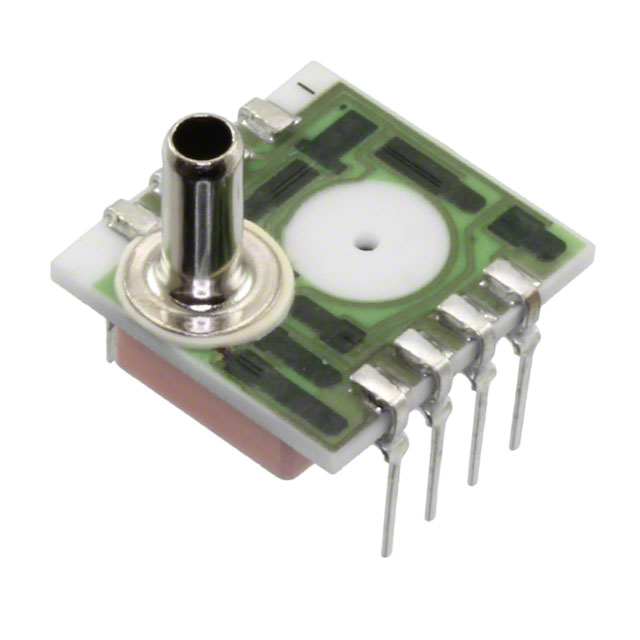

1240-015A-3S
SENSOR 15PSIA 0.13"" 0.1V

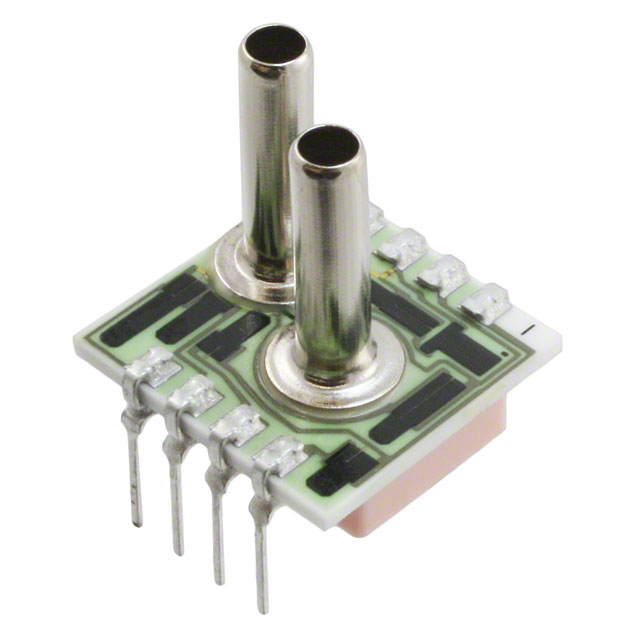

1240-015D-3L
