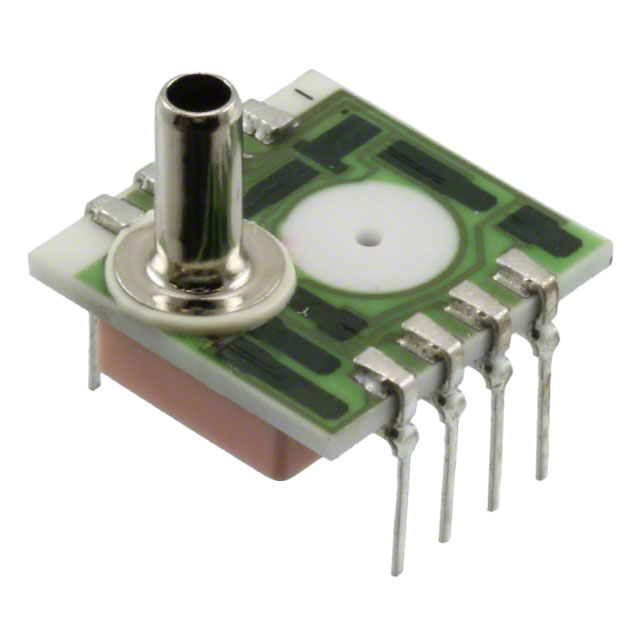

1230-015A-3S
SENSOR 15PSIA 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1230 series absolute pressure sensor, part number 1230-015A-3S. This 15 PSIA (103.42 kPa) sensor features a 0.13" (3.18mm) male tube port and a barbless port style. It operates within a pressure range of 15 PSIA and an extended temperature range of -40°C to 125°C. The output is a Wheatstone bridge, providing a voltage range of 0 mV to 100 mV, with an accuracy of ±0.1%. Designed for board mount applications, this temperature-compensated sensor is housed in an 8-DIP module with PC pin termination. It is suitable for applications requiring precise absolute pressure measurement in demanding environments.
Additional Information
Series: 1230RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
