1220A-100G-3N
SENSOR 100PSIG .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

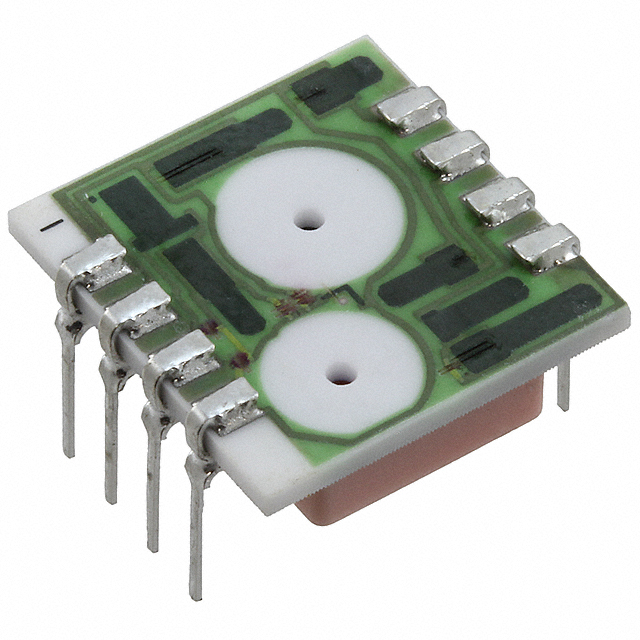

TE Connectivity Measurement Specialties 1220A-100G-3N is a vented gauge pressure sensor with an operating pressure range of 0 to 100 PSIG (689.48 kPa). This 8-DIP module features a Wheatstone bridge output, providing a 0 mV to 50 mV signal across its 1.235V supply voltage. Designed with temperature compensation and an accuracy of ±0.1%, it is suitable for board mount applications. The component operates within a temperature range of -40°C to 125°C and has a maximum pressure rating of 200 PSIG (1378.95 kPa). Its through-hole mounting and PC pin termination facilitate integration into various systems. This sensor is commonly utilized in industrial automation and measurement systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 200PSI (1378.95kPa) |
