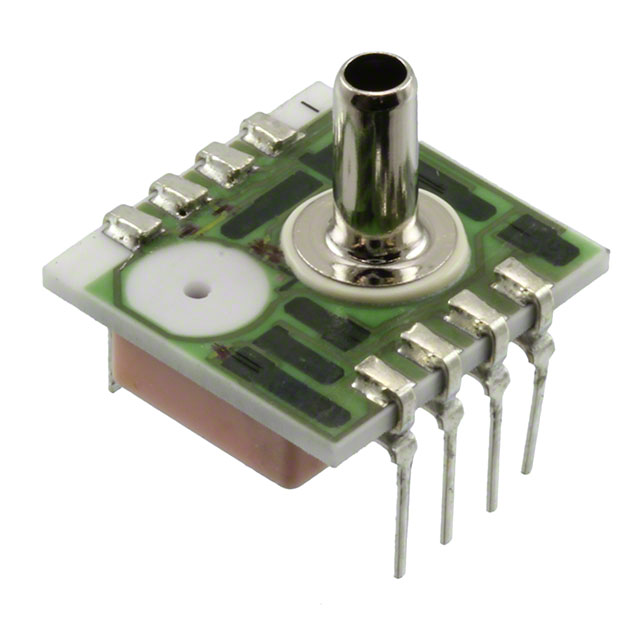

1220A-030G-3S
SENSOR 30PSIG 0.13"" .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1220A-030G-3S is a pressure sensor designed for board mount applications. This vented gauge sensor operates within a 30 PSI (206.84kPa) range, with a maximum pressure capability of 90 PSI (620.53kPa). It features a 0.13" (3.18mm) male tube port and a Wheatstone bridge output delivering 0 mV to 50 mV. The component is temperature compensated and packaged in an 8-DIP module with through-hole mounting. Operating across a temperature range of -40°C to 125°C, this sensor is suitable for industrial, medical, and automotive applications requiring precise pressure monitoring.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 90PSI (620.53kPa) |
