1220A-015D-3L
SENSOR 15PSID 0.13"" .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

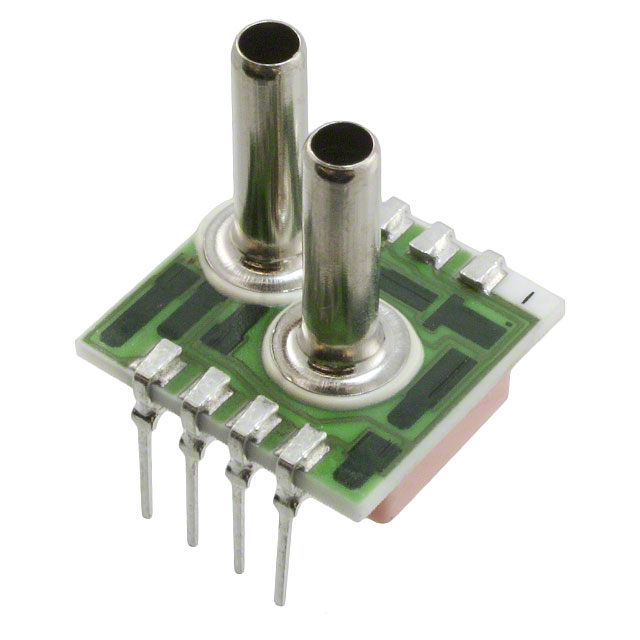

TE Connectivity Measurement Specialties 1220A-015D-3L is a differential pressure sensor designed for precise measurements. This component operates within a 15-PSI (103.42kPa) range and features a dual, 0 mV to 50 mV Wheatstone bridge output. The sensor is housed in an 8-DIP module with through-hole mounting and termination via PC pins. It supports a 0.13-inch (3.23mm) dual male port with a barbless style. The 1220A-015D-3L offers ±0.1% accuracy and is temperature compensated, operating across a wide temperature range of -40°C to 125°C. Its maximum pressure rating is 45-PSI (310.26kPa). This sensor is suitable for board mount applications and commonly found in industrial automation and HVAC systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | Male - 0.13"" (3.23mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
