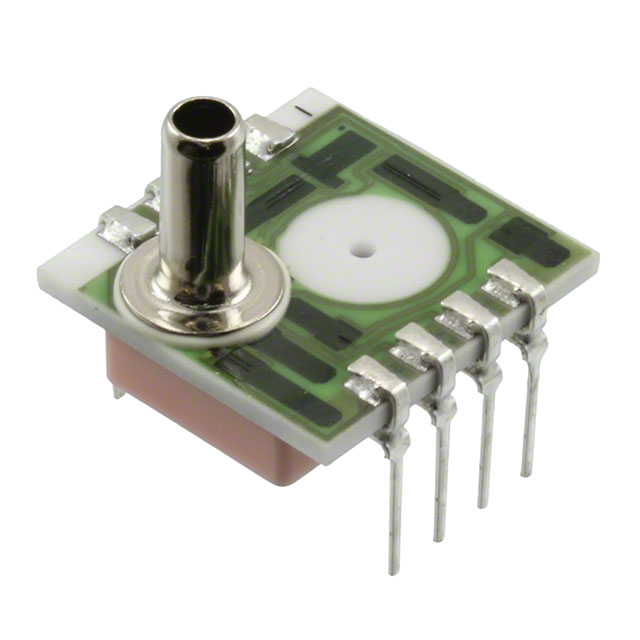

1220A-015A-3S
SENSOR 15PSIA 0.13"" .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1220A-015A-3S is an absolute pressure sensor module designed for board mounting applications. This 8-DIP packaged component operates within a 1.235V supply voltage and offers a Wheatstone bridge output range of 0 mV to 50 mV. It is engineered to measure pressures up to 15 PSI (103.42kPa) with a maximum pressure rating of 45 PSI (310.26kPa). The sensor features a 0.13" (3.18mm) male tube port, suitable for barbless connections. Operating across a wide temperature range of -40°C to 125°C, this temperature-compensated sensor is utilized in various industrial and automotive sectors.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
