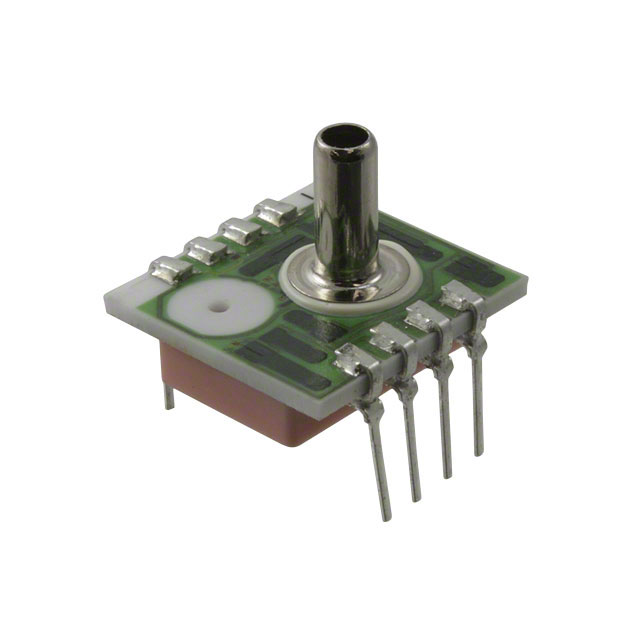

1220A-005G-3S
SENSOR 5PSIG 0.13"" .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties' 1220A-005G-3S is a vented gauge pressure sensor designed for precise pressure measurement. This through-hole mounted component operates at 5 PSIG (34.47kPa) with a maximum pressure capability of 15 PSIG (103.42kPa). It features a Wheatstone bridge output delivering a 0 mV to 50 mV signal, calibrated for accuracy of ±0.1%. The sensor is temperature compensated and operates within a wide temperature range of -40°C to 125°C. Terminated with PC pins, it utilizes an 8-DIP Module package. The 0.13" (3.3mm) male tube port facilitates connection. This component is commonly utilized in applications such as industrial automation and HVAC systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | Male - 0.13"" (3.3mm), Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 15PSI (103.42kPa) |
