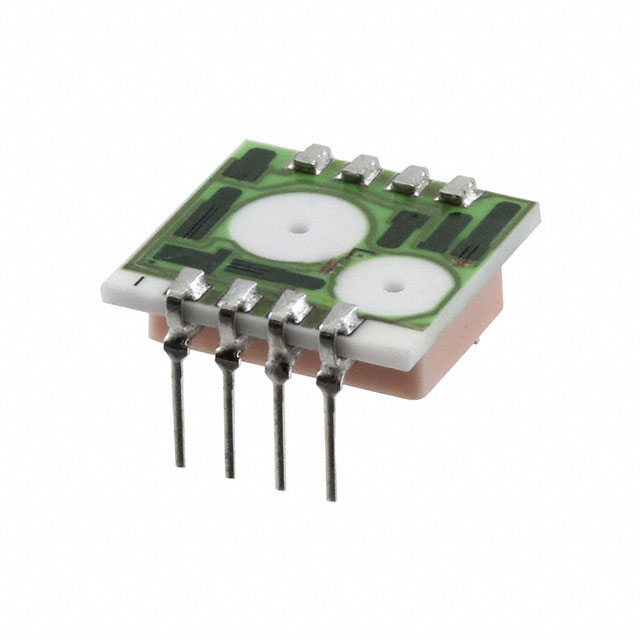

1220A-005G-3N
SENSOR 5PSIG .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1220A-005G-3N is a vented gauge pressure sensor designed for through-hole mounting. This component provides a mV output proportional to pressure, with an operating pressure range of 0 to 5 PSI (34.47 kPa). The output signal is a Wheatstone bridge, delivering 0 mV to 50 mV across the operating pressure range. Featuring temperature compensation and ±0.1% accuracy, this sensor is suitable for applications requiring precise pressure monitoring. It operates within a voltage supply of 1.235V and an extended temperature range of -40°C to 125°C. The 8-DIP Module package with PC pin termination is designed for board mount applications in industries such as industrial automation and test and measurement equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 20PSI (137.9kPa) |
