1220A-002D-3S
SENSOR 2PSID 0.13"" .05VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

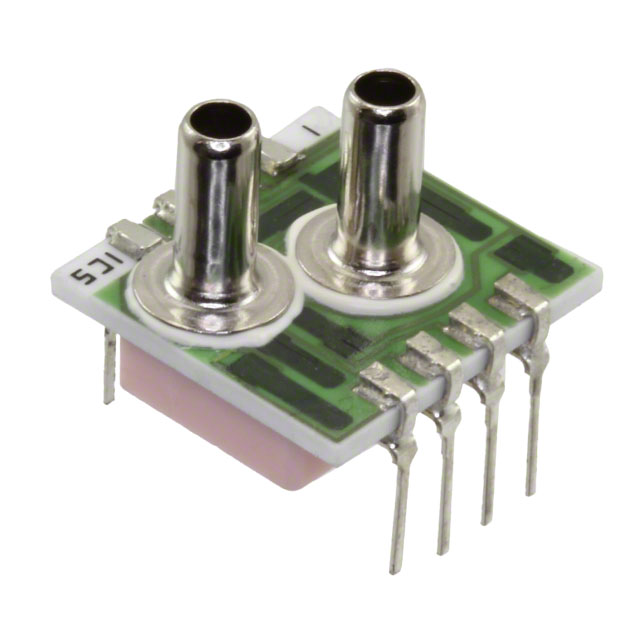

TE Connectivity Measurement Specialties 1220A-002D-3S is a differential pressure sensor designed for through-hole mounting. This 8-DIP module features a 2 PSI (13.79kPa) operating pressure range with a maximum pressure capability of 10 PSI (68.95kPa). The sensor utilizes a Wheatstone bridge output, providing a differential output range of 0 mV to 50 mV. It is equipped with dual male, 0.13-inch (3.18mm) tube ports and a barbless port style. Operating across a temperature range of -40°C to 125°C, this component is temperature compensated to ensure stable performance. The 1220A-002D-3S is suitable for board-mount applications in industries such as industrial automation and medical equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 50 mV |
| Operating Pressure | 2PSI (13.79kPa) |
| Pressure Type | Differential |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.235V |
| Port Size | Male - 0.13"" (3.18mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 10PSI (68.95kPa) |
