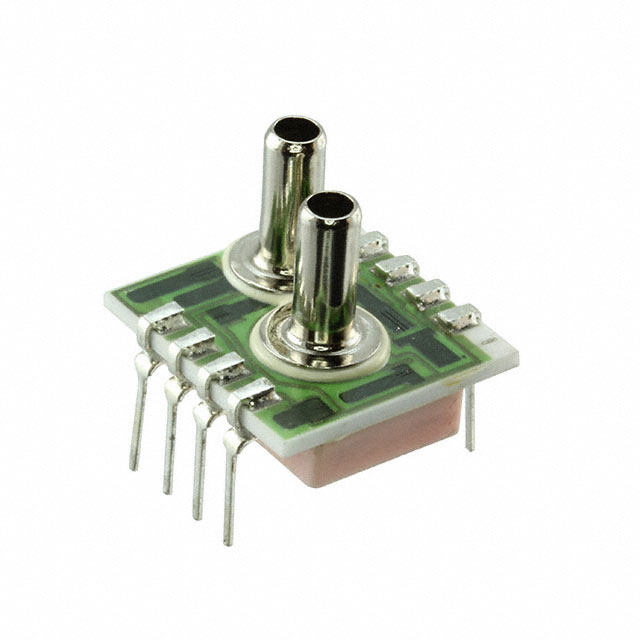

1210A-10WD-3S
SENSOR 0.36PSID 0.13"" .04VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1210A-10WD-3S is a differential pressure sensor designed for board mounting. This component, part of a series of pressure transducers, offers a 0 mV to 40 mV output across a Wheatstone bridge configuration, with a typical operating pressure of 0.36 PSI (2.49 kPa). It features a male, barbless port with a 0.13" (3.18mm) tube connection. The 8-DIP module package with PC pin termination facilitates through-hole mounting. This sensor is temperature compensated and suitable for applications in industrial and medical equipment requiring precise differential pressure measurement. The operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 40 mV |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Pressure Type | Differential |
| Accuracy | - |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 5PSI (34.47kPa) |
