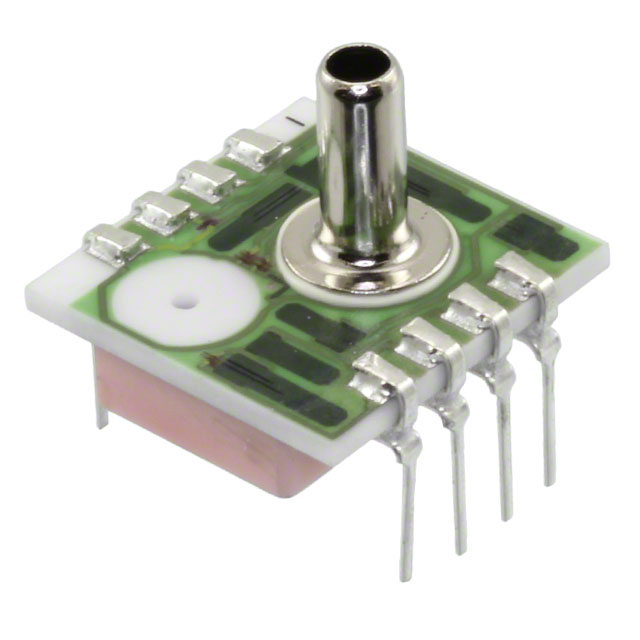

1210A-100G-3S
SENSOR 100PSIG 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 1210A-100G-3S is a pressure sensor designed for robust measurement applications. This vented gauge sensor offers an operating pressure range of 100 PSI (689.48kPa) with a maximum pressure rating of 200 PSI (1378.95kPa). It features a 0 mV to 100 mV output via a Wheatstone bridge configuration, providing a linear response. The sensor is housed in an 8-DIP Module package with through-hole mounting and a male 0.13" (3.18mm) tube port style. Temperature compensation is integrated, ensuring reliable performance across an operating temperature range of -40°C to 125°C. This component is commonly utilized in board mount applications within various industrial and automotive sectors.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 200PSI (1378.95kPa) |
