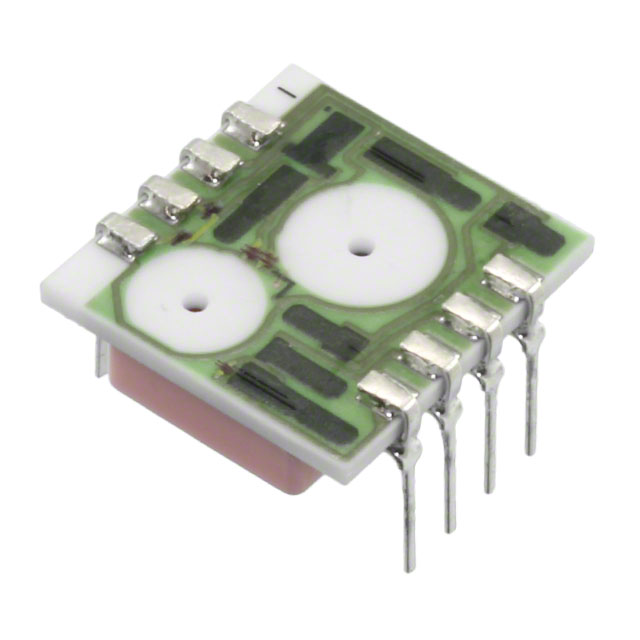

1210A-100G-3N
SENSOR 100PSIG 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1210A-100G-3N is a vented gauge pressure sensor with an operating pressure of 100 PSI (689.48 kPa). This 8-DIP module features a Wheatstone bridge output, providing a 0 mV to 100 mV range. Designed for board mount applications, it offers temperature compensation and operates across a wide temperature range of -40°C to 125°C. The through-hole mounting type and PC pin termination facilitate integration into demanding systems. This component is suitable for applications in industrial control, aerospace, and medical instrumentation where precise pressure monitoring is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 200PSI (1378.95kPa) |
