1210A-100G-3L
SENSOR 100PSIG 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

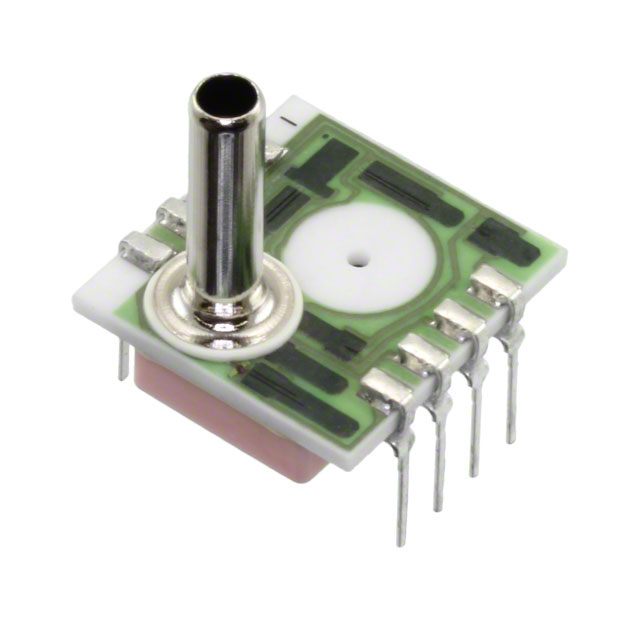

The TE Connectivity Measurement Specialties 1210A-100G-3L is a vented gauge pressure sensor designed for demanding applications. This component features a 0 mV to 100 mV output, derived from a Wheatstone bridge configuration, and offers an operating pressure range of 100 PSIG (689.48 kPa). The sensor incorporates temperature compensation for enhanced performance across its operating temperature range of -40°C to 125°C. It is packaged in an 8-DIP Module with through-hole mounting and a 0.13-inch (3.23mm) male tube port, suitable for board mount applications. Industries such as industrial automation, medical devices, and aerospace benefit from the reliable performance and accuracy of this pressure sensing solution.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.23mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 200PSI (1378.95kPa) |
