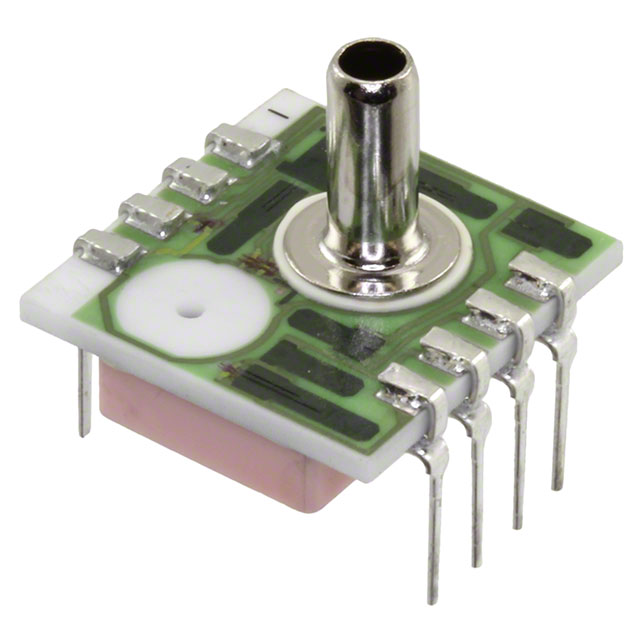

1210A-030D-3L
SENSOR 30PSID 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1210A-030D-3L is a differential pressure sensor with an operating range of 30PSI (206.84kPa). This board mount component features a Wheatstone bridge output, providing a dual 0 mV to 100 mV signal. Engineered with temperature compensation, it utilizes a male -0.13" (3.23mm) tube port style for its dual, barbless connections. The 8-DIP Module package is designed for through-hole mounting with PC pin termination. This sensor is suitable for applications across industrial automation and medical equipment where precise differential pressure monitoring is critical. The maximum pressure rating is 90PSI (620.53kPa), and it operates within a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Differential |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.23mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 90PSI (620.53kPa) |
