1210A-015G-3L
SENSOR 15PSIG 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

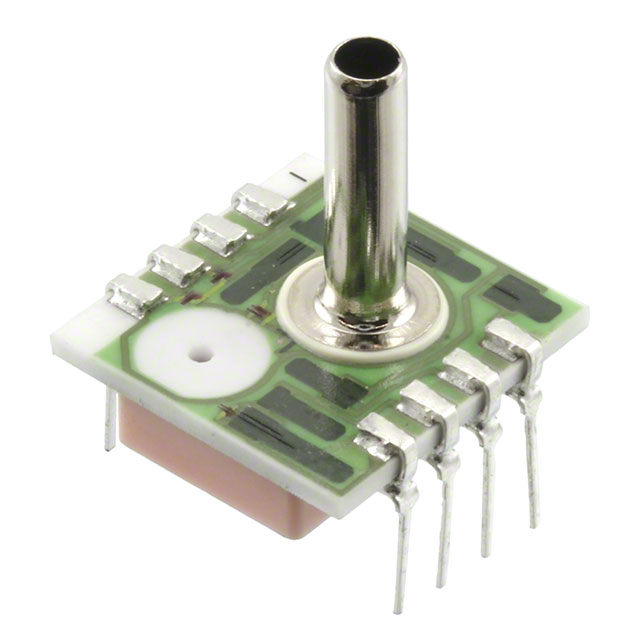

TE Connectivity Measurement Specialties 1210A-015G-3L is a vented gauge pressure sensor designed for board mounting applications. This component measures pressure up to 15 PSI (103.42kPa) with an operating range of 0 PSI to 15 PSI. It features a temperature-compensated Wheatstone bridge output, providing a linear output signal from 0 mV to 100 mV. The sensor utilizes a male, barbless port style with a 0.13-inch (3.23mm) tube connection. Housed in an 8-DIP module with through-hole mounting, it operates reliably across a wide temperature range of -40°C to 125°C. This component is suitable for industrial, medical, and consumer electronics sectors requiring precise pressure monitoring. The maximum pressure rating is 45 PSI (310.26kPa).
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.23mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
