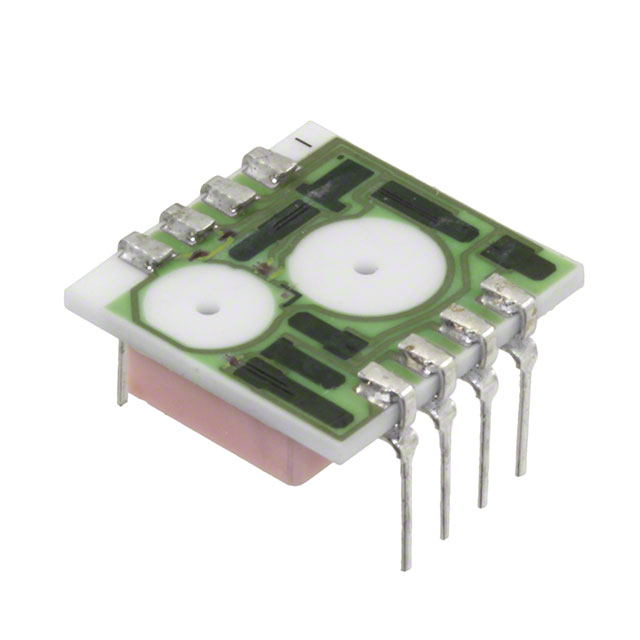

1210A-015A-3N
SENSOR 15PSIA 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1210A-015A-3N is an absolute pressure sensor with an operating pressure range of 15 PSI (103.42 kPa). This 8-DIP module features a Wheatstone bridge output, providing a 0 mV to 100 mV signal. Designed for through-hole mounting, it is temperature compensated and suitable for applications requiring board mounting. The sensor operates across a wide temperature range of -40°C to 125°C. Its maximum pressure rating is 45 PSI (310.26 kPa). This component is utilized in industrial, aerospace, and medical equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
