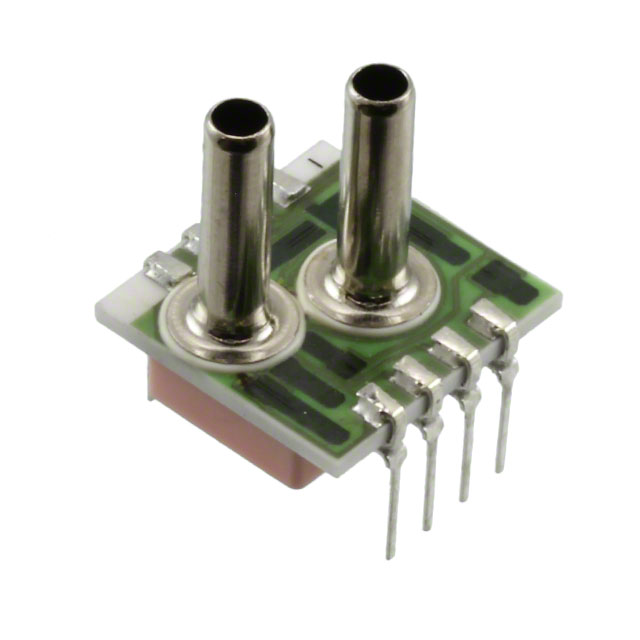

1210A-005D-3L
SENSOR 5PSID 0.13"" 0.1VManufacturer: TE Connectivity Measurement Specialties
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
TE Connectivity Measurement Specialties 1210A-005D-3L is a differential pressure sensor designed for board mounting applications. This component features a 5 PSI (34.47kPa) operating pressure range with a maximum pressure of 20 PSI (137.9kPa). The sensor utilizes a Wheatstone bridge output configuration, providing an analog signal from 0 mV to 100 mV. It is characterized by temperature compensation and operates across a wide temperature range of -40°C to 125°C. The 1210A-005D-3L is housed in an 8-DIP Module package with through-hole mounting and dual, barbless, male ports designed for a 0.13" (3.23mm) tube. This sensor is suitable for applications in industrial automation and HVAC systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Differential |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.13"" (3.23mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
